When tuning Elasticsearch for high-concurrency workloads, the standard approach is to maximize RAM to keep the working set of documents in memory to achieve low search latency. Consequently, best_compression is rarely considered for search workloads, as it is primarily viewed as a storage saving measure for Elastic Observability and Elastic Security use cases where storage efficiency takes priority.

In this blog, we demonstrate that when the dataset size significantly exceeds the OS page cache, best_compression improves search performance and resource efficiency by reducing the I/O bottleneck.

The setup

Our use case is a high-concurrency search application running on Elastic Cloud CPU optimized instances.

• Data volume: ~500 million documents
• Infrastructure: 6 Elastic Cloud (Elasticsearch service) instances (each instance: 1.76 TB storage | 60 GB RAM | 31.9 vCPU)
• Memory-to-storage ratio: ~5% of the total dataset fits into RAM

The symptoms: high latency

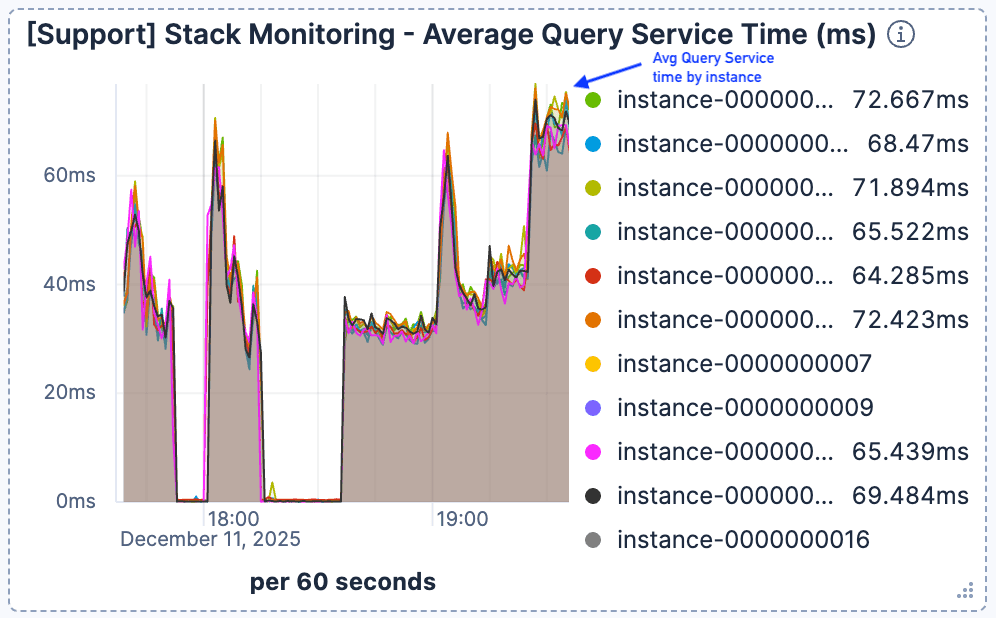

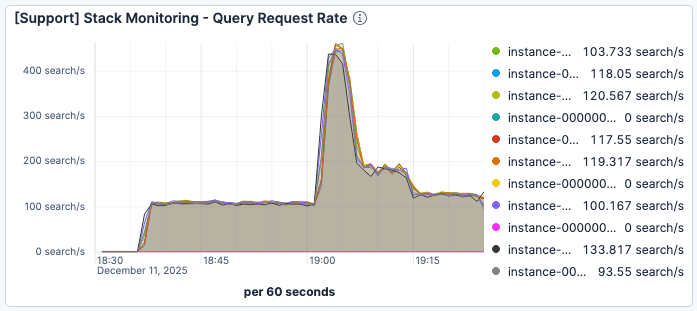

We observed that when the number of current requests spiked around 19:00, the search latency deteriorated significantly. As shown in Figure 1 and Figure 2, while traffic peaked around 400 requests per minute per Elasticsearch instance, the average query service time degraded to over 60ms.

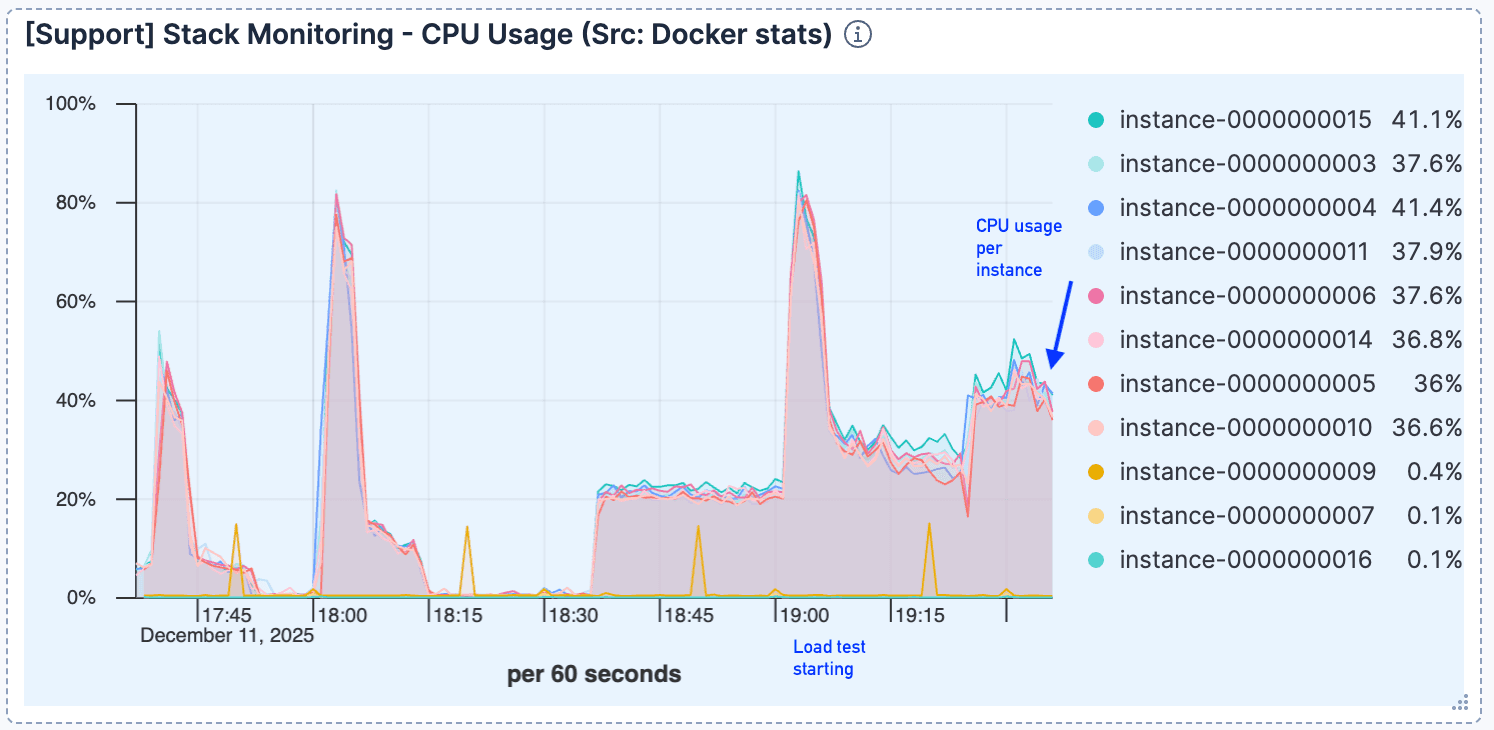

The CPU usage remained relatively low after the initial connections handling, indicating that compute was not the bottleneck.

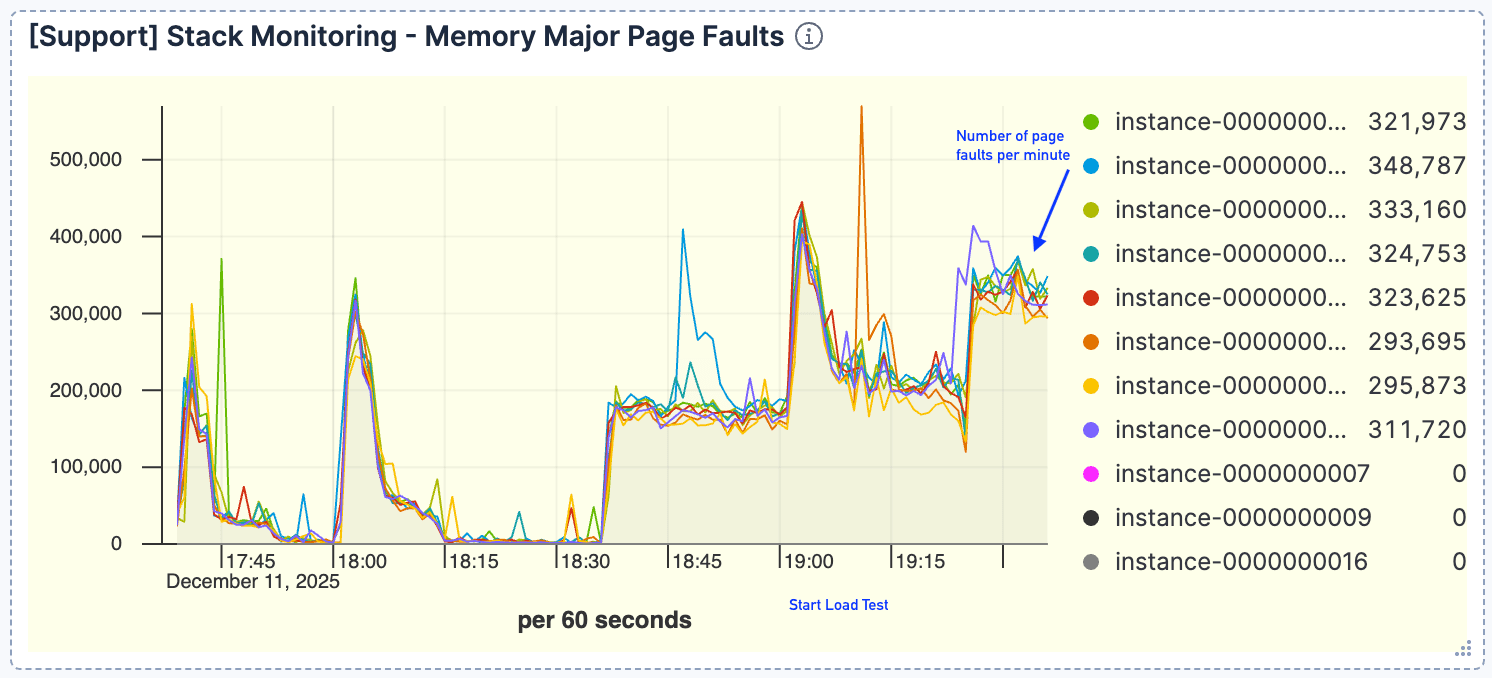

A strong correlation emerged between query volume and page faults. As requests increased, we observed a proportional rise in page faults, peaking around 400k/minute. This indicated that the active dataset could not fit in the page cache.

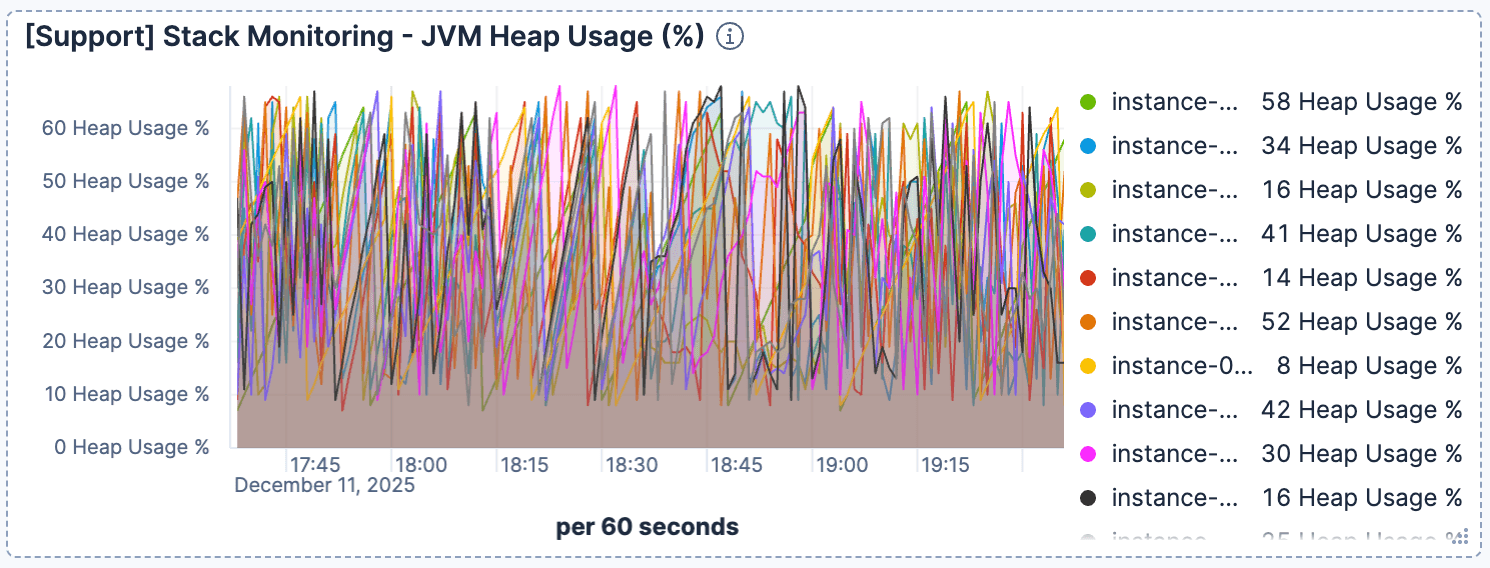

Simultaneously, the JVM heap usage appeared to be normal and healthy. This ruled out garbage collection issues and confirmed the bottleneck was I/O.

The diagnosis: I/O bound

The system was I/O bound. Elasticsearch relies on the OS page cache to serve index data from memory. When the index is too large for the cache, queries trigger expensive disk reads. While the typical solution is to scale horizontally (add nodes/RAM), we wanted to exhaust efficiency improvements on our existing resources first.

The fix

By default, Elasticsearch uses LZ4 compression for its index segments, striking a balance between speed and size. We hypothesized that switching to best_compression (which uses zstd) would reduce the size of indices. A smaller footprint allows a larger percentage of the index to fit in the page cache, trading a negligible increase in CPU (for decompression) for a reduction in disk I/O.

To enable best_compression, we reindexed the data with the index setting index.codec: best_compression. Alternatively, the same result could be achieved by closing the index, resetting the index codec to best_compression, and then performing a segment merge.

The results

The results confirmed our hypothesis: improved storage efficiency directly translated into a substantial boost in search performance with no accompanying increase in CPU utilization.

Applying best_compression reduced the index size by approximately 25%. While less than the reduction seen in repetitive log data, this 25% reduction effectively increased our page cache capacity by the same margin.

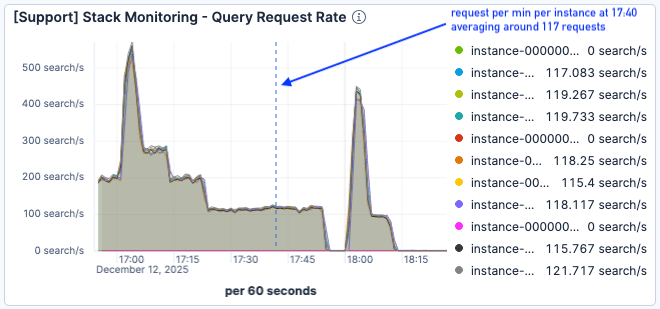

During the next load test (starting at 17:00), the traffic was even higher, peaking at 500 requests per minute per Elasticsearch node.

Despite the higher load, the CPU utilization was lower than in the previous run. The elevated usage in the earlier test was likely due to the overhead of excessive page fault handling and disk I/O management.

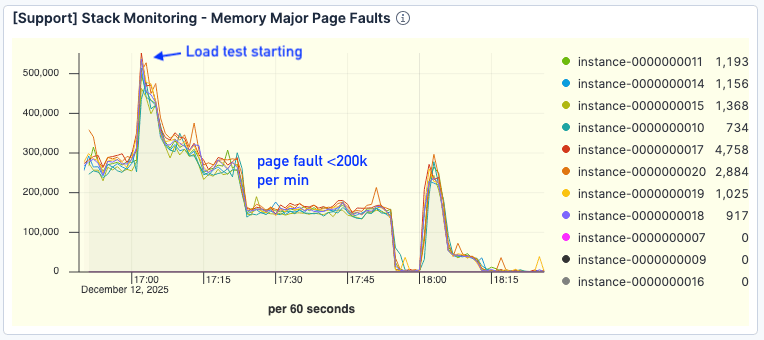

Crucially, page faults dropped significantly. Even at higher throughput, faults hovered around <200k per minute, compared to >300k in the baseline test.

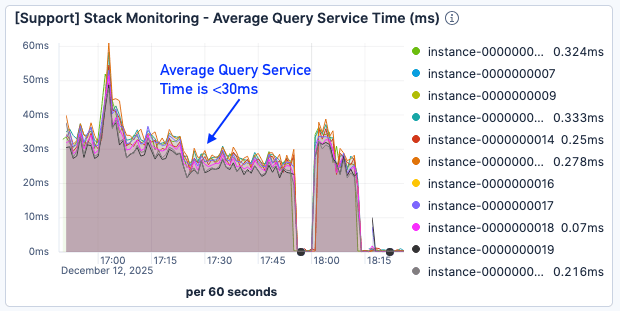

Although the page fault results were still less than optimal, query service time was cut by about 50%, hovering below 30ms even under heavier load.

The conclusion: best_compression for search

For search use cases where data volume exceeds available physical memory, best_compression is a potent performance-tuning lever.

The conventional solution to cache misses is to scale out to increase RAM. However, by reducing the index footprint, we achieved the same goal: maximizing the document count in the page cache. Our next step is to explore index sorting to further optimize storage and squeeze even more performance out of our existing resources.
