abuse.ch integration for Elastic

Stack 9.1.0 Serverless Observability Serverless Security

Version 3.4.0 (View all)
Subscription level
What's this?		 Basic
Level of support
What's this?		 Elastic
Ingestion method(s) API

The abuse.ch integration for Elastic allows you to collect logs from abuse.ch, which provides actionable, community-driven threat intelligence data and helps identify, track, and mitigate malware and botnet-related cyber threats. With this integration, threat intelligence indicators can be ingested into Elastic for enhanced threat detection and event enrichment.

The abuse.ch integration is compatible with v1 version of abuse.ch URLhaus, MalwareBazaar, ThreatFox, and SSLBL APIs.

This integration periodically queries the abuse.ch APIs to retrieve threat intelligence indicators.

This integration collects threat intelligence indicators into the following datasets:

  • ja3_fingerprints: Collects JA3 fingerprint based threat indicators identified by SSLBL via SSLBL API endpoint.

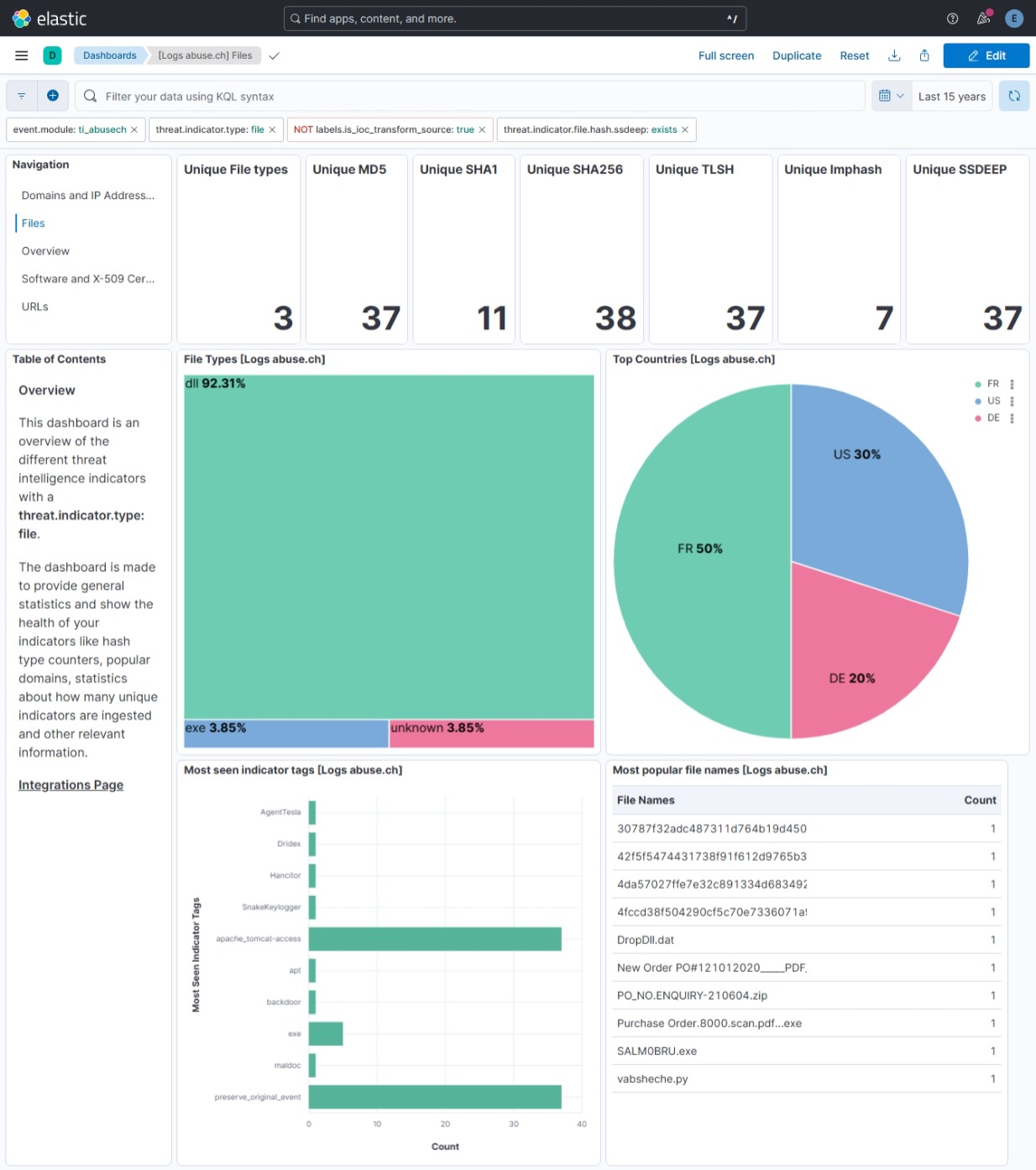

  • malware: Collects malware payloads from URLs tracked by URLhaus via URLhaus Bulk API.
  • malwarebazaar: Collects malware payloads from MalwareBazaar via MalwareBazaar API.

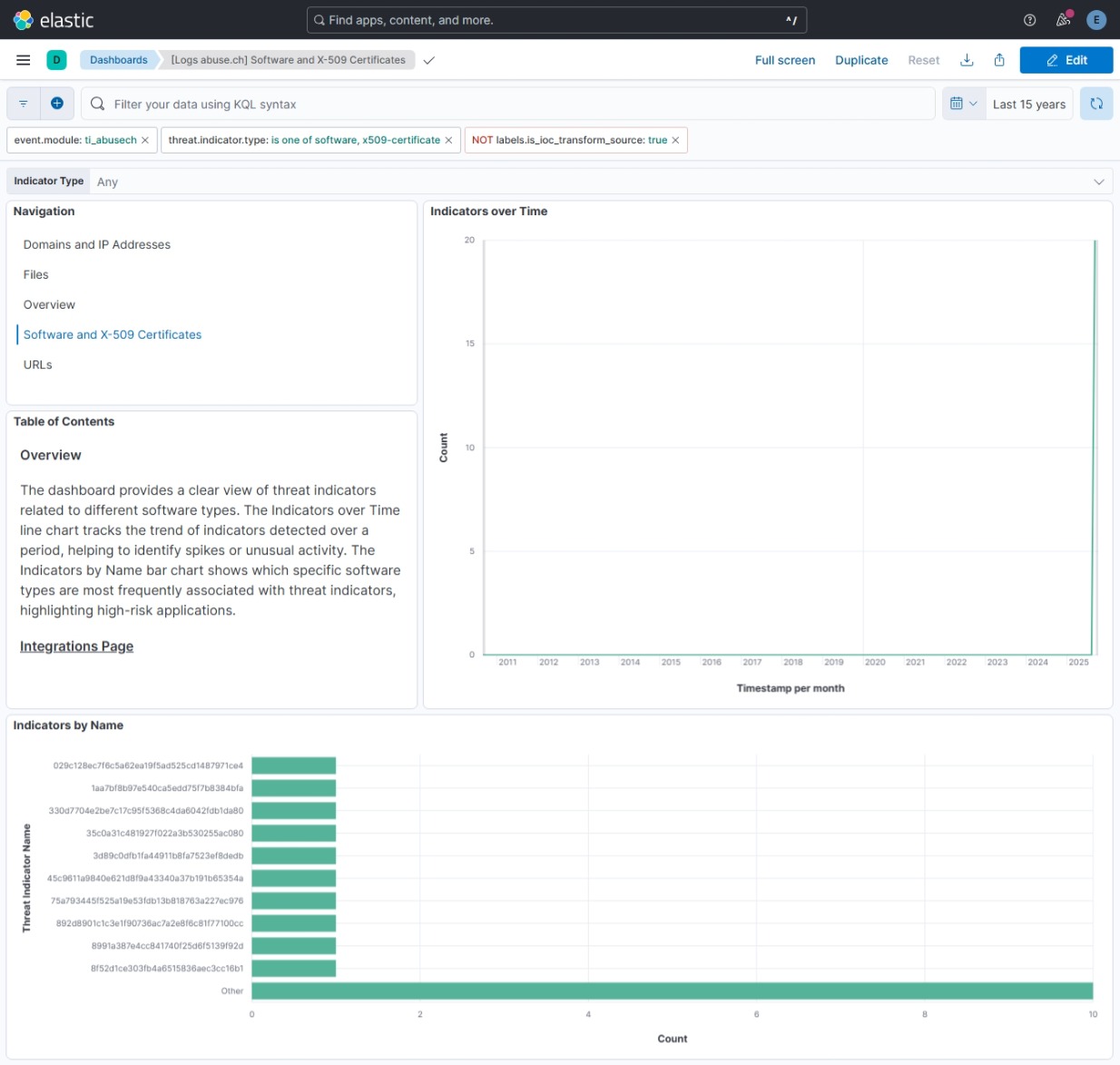

  • sslblacklist: Collects SSL certificate based threat indicators blacklisted on SSLBL via SSLBL API endpoint.

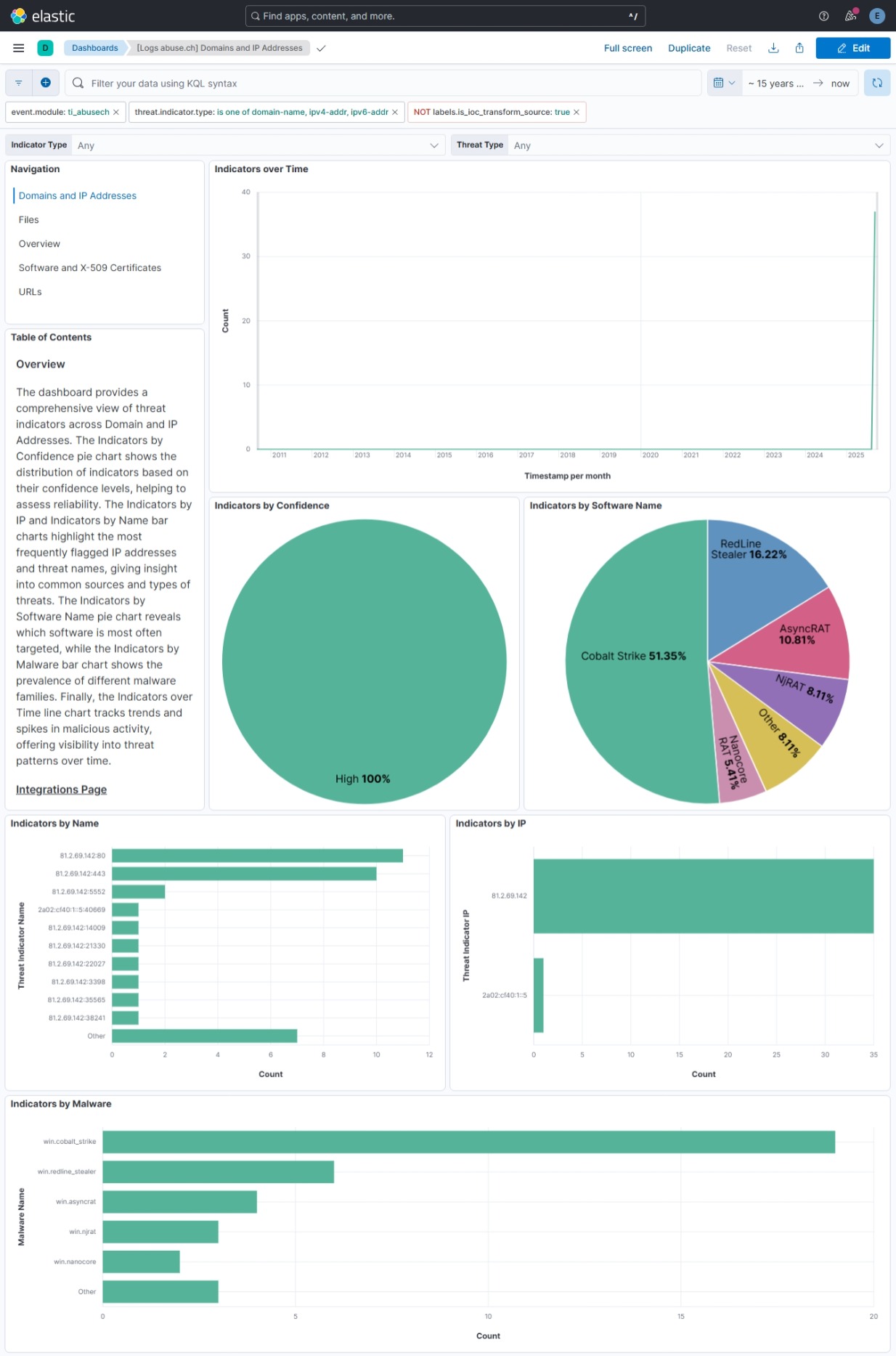

  • threatfox: Collects threat indicators from ThreatFox via ThreatFox API.

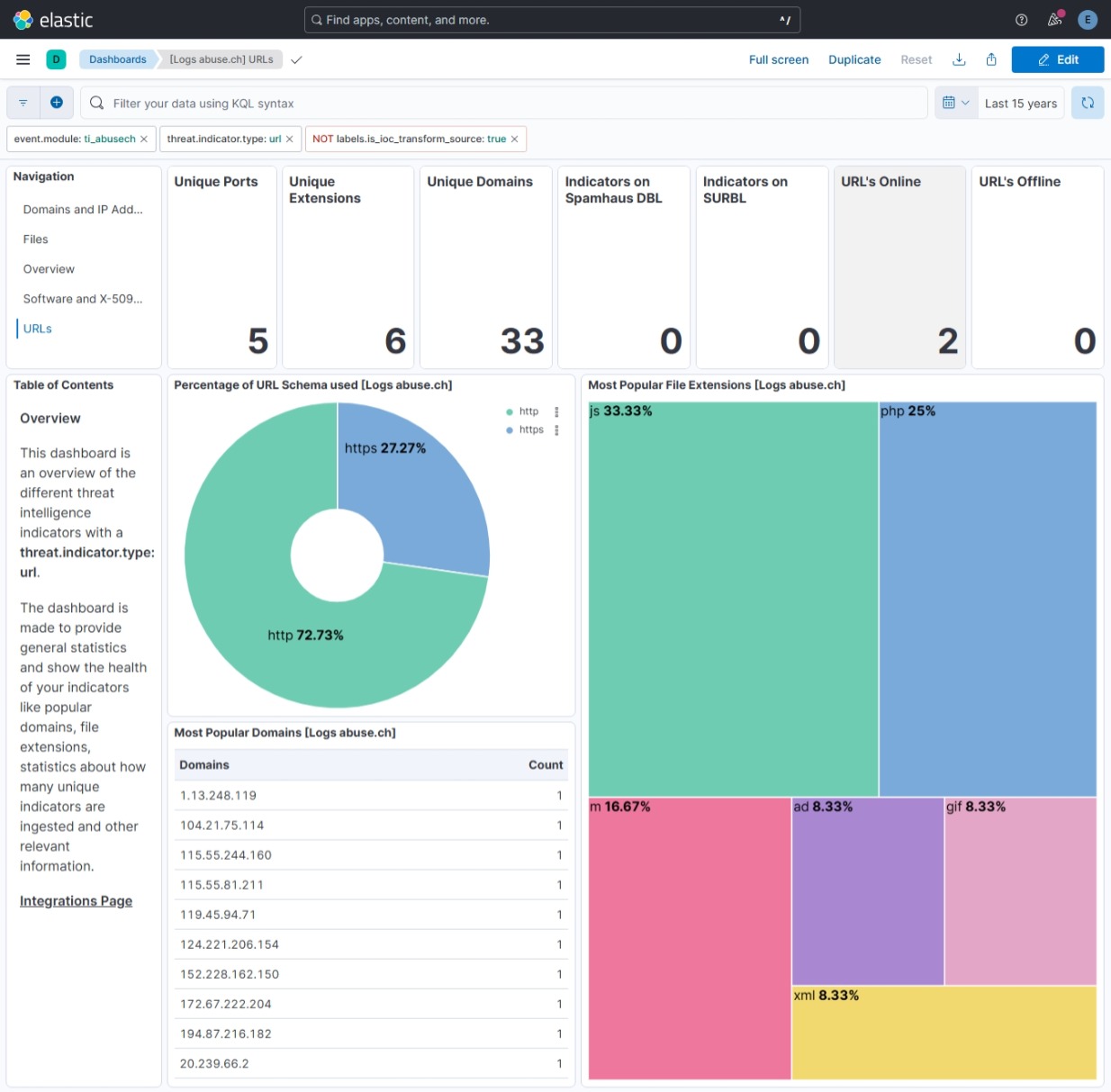

  • url: Collects malware URL based threat indicators from URLhaus via URLhaus API.

The abuse.ch integration brings threat intel into Elastic Security, enabling detection alerts when Indicators of Compromise (IoCs) like malicious IPs, domains, or hashes match your event or alert data. This data can also support threat hunting, enrich alerts with threat context, and power dashboards to track known threats in your environment.

This integration installs Elastic latest transforms. For more details, check the Transform setup and requirements.

abuse.ch requires an Auth Key (API key) for request authentication. Any requests made without this key will be rejected by the abuse.ch APIs.

  1. Sign up for a new account, or login into the abuse.ch authentication portal.
  2. Connect with at least one authentication provider: Google, Github, X, or LinkedIn.
  3. Select Save profile.
  4. In the Optional section, click the Generate Key button to generate Auth Key.
  5. Copy the generated Auth Key.

For more details, check the abuse.ch Community First - New Authentication blog.

This integration supports both Elastic Agentless-based and Agent-based installations.

Agentless integrations allow you to collect data without having to manage Elastic Agent in your cloud. They make manual agent deployment unnecessary, so you can focus on your data instead of the agent that collects it. For more information, refer to Agentless integrations and the Agentless integrations FAQ.

Agentless deployments are only supported in Elastic Serverless and Elastic Cloud environments. This functionality is in beta and is subject to change. Beta features are not subject to the support SLA of official GA features.

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions. You can install only one Elastic Agent per host.

  1. In the top search bar in Kibana, search for Integrations.

  2. In the search bar, type abuse.ch.

  3. Select the abuse.ch integration from the search results.

  4. Select Add abuse.ch to add the integration.

  5. Enable and configure only the collection methods which you will use.

    • To Collect abuse.ch logs via API, you'll need to:

      • Configure Auth Key.
      • Enable/Disable the required datasets.
      • For each dataset, adjust the integration configuration parameters if required, including the URL, Interval, etc. to enable data collection.

  6. Select Save and continue to save the integration.

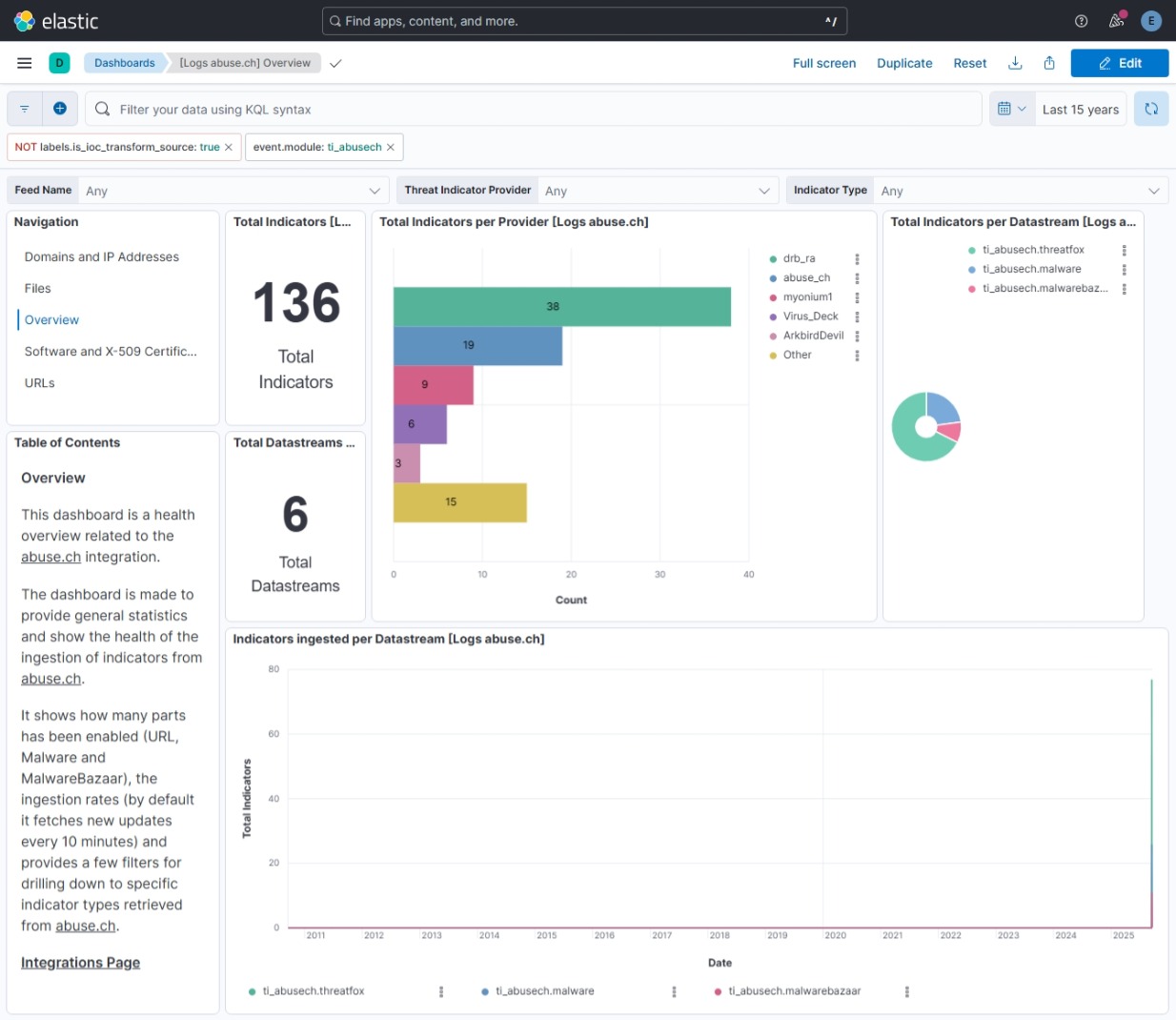

  1. In Kibana, navigate to Dashboards.
  2. In the search bar, type abuse.ch.
  3. Select a dashboard for the dataset you are collecting, and verify the dashboard information is populated.
  1. In Kibana, navigate to Management > Stack Management.
  2. Under Data, select Transforms.
  3. In the search bar, type abuse.ch.
  4. All transforms from the search results should indicate Healthy under the Health column.
  • When creating the Auth Key inside the abuse.ch authentication portal, make sure you connect at least one additional authentication provider to ensure seemless access to the abuse.ch platform.
  • Check for captured ingestion errors inside Kibana. Ingestion errors, including API errors, are captured into error.message field.
    1. Navigate to Analytics > Discover.
    2. In Search field names, search and add fields error.message and data_stream.dataset into the Discover view. For more details on adding fields inside Discover, check Discover getting started.
    3. Search for the dataset(s) that are enabled by this integration. For example, in the KQL query bar, use the KQL query data_stream.dataset: ti_abusech.url to search on specific dataset or KQL query data_stream.dataset: ti_abusech.* to search on all datasets.
    4. Search for errors that are captured into error.message field using KQL query error.message: *. You can combine queries using KQL boolean expressions, such as AND. For example, to search for errors inside url dataset, you can use KQL query: data_stream.dataset: ti_abusech.url AND error.message: *.
  • Common API errors: All the abusec.ch API errors are captured inside the error fields.
    1. abuse.ch APIs return HTTP status 403 Forbidden when the Auth Key is invalid. In such case, the error.message field is populated with message query_status: unknown_auth_key and error.id with 403 Forbidden. To fix this, you need to regenerate the Auth Key in the abuse.ch authentication portal and update the integration policy with newly generated Auth Key.
    2. abuse.ch APIs return HTTP status 500 Internal Server Error when experiencing problem on the abuse.ch service. In such case, error.message field is populated with message POST:500 Internal Server Error (500) and error.id with 500 Internal Server Error. This is likely a one-off scenario and the ingestion should resume normally in the subsequent request.
  • Since this integration supports the expiration of Indicators of Compromise (IoCs) using Elastic latest transform, the threat indicators are present in both source and destination indices. While this may appear to be duplicate ingestion, it is an implementation detail necessary for properly expiring threat indicators.
  • Because the latest copy of threat indicators is now indexed in two places, that is, in both source and destination indices, users must anticipate storage requirements accordingly. The ILM policies on source indices can be tuned to manage their data retention period.
  • For help with Elastic ingest tools, check Common problems.

For more information on architectures that can be used for scaling this integration, check the Ingest Architectures documentation.

Exported fields
Field Description Type
@timestamp Event timestamp. date
abusech.ja3_fingerprints.deleted_at The timestamp when the indicator is (will be) deleted. date
abusech.ja3_fingerprints.urlhaus_reference Link to URLhaus entry. keyword
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset name. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset constant_keyword
event.module Event module constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
labels.interval User-configured value for Interval setting. This is used in calculation of indicator expiration time. keyword
labels.is_ioc_transform_source Indicates whether an IOC is in the raw source data stream, or the in latest destination index. constant_keyword
log.flags Flags for the log file. keyword
log.offset Offset of the entry in the log file. long
threat.feed.dashboard_id Dashboard ID used for Kibana CTI UI constant_keyword
threat.feed.name Display friendly feed name constant_keyword
threat.indicator.first_seen The date and time when intelligence source first reported sighting this indicator. date
threat.indicator.last_seen The date and time when intelligence source last reported sighting this indicator. date
threat.indicator.modified_at The date and time when intelligence source last modified information for this indicator. date
Exported fields
Field Description Type
@timestamp Event timestamp. date
abusech.malware.deleted_at The indicator expiration timestamp. date
abusech.malware.ioc_expiration_duration The configured expiration duration. keyword
abusech.malware.signature Malware family. keyword
abusech.malware.virustotal.link Link to the Virustotal report. keyword
abusech.malware.virustotal.percent AV detection in percent. float
abusech.malware.virustotal.result AV detection ratio. keyword
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset name. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset constant_keyword
event.module Event module constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
labels.is_ioc_transform_source Indicates whether an IOC is in the raw source data stream, or the in latest destination index. constant_keyword
log.flags Flags for the log file. keyword
log.offset Offset of the entry in the log file. long
threat.feed.dashboard_id Dashboard ID used for Kibana CTI UI constant_keyword
threat.feed.name Display friendly feed name constant_keyword
threat.indicator.first_seen The date and time when intelligence source first reported sighting this indicator. date
threat.indicator.last_seen The date and time when intelligence source last reported sighting this indicator. date
threat.indicator.modified_at The date and time when intelligence source last modified information for this indicator. date
Exported fields
Field Description Type
@timestamp Event timestamp. date
abusech.malwarebazaar.anonymous Identifies if the sample was submitted anonymously. long
abusech.malwarebazaar.code_sign.algorithm Algorithm used to generate the public key. keyword
abusech.malwarebazaar.code_sign.cscb_listed Whether the certificate is present on the Code Signing Certificate Blocklist (CSCB). boolean
abusech.malwarebazaar.code_sign.cscb_reason Why the certificate is present on the Code Signing Certificate Blocklist (CSCB). keyword
abusech.malwarebazaar.code_sign.issuer_cn Common name (CN) of issuing certificate authority. keyword
abusech.malwarebazaar.code_sign.serial_number Unique serial number issued by the certificate authority. keyword
abusech.malwarebazaar.code_sign.subject_cn Common name (CN) of subject. keyword
abusech.malwarebazaar.code_sign.thumbprint Hash of certificate. keyword
abusech.malwarebazaar.code_sign.thumbprint_algorithm Algorithm used to create thumbprint. keyword
abusech.malwarebazaar.code_sign.valid_from Time at which the certificate is first considered valid. date
abusech.malwarebazaar.code_sign.valid_to Time at which the certificate is no longer considered valid. keyword
abusech.malwarebazaar.deleted_at The indicator expiration timestamp. date
abusech.malwarebazaar.dhash_icon In case the file is a PE executable: dhash of the samples icon. keyword
abusech.malwarebazaar.intelligence.downloads Number of downloads from MalwareBazaar. long
abusech.malwarebazaar.intelligence.mail.Generic Malware seen in generic spam traffic. keyword
abusech.malwarebazaar.intelligence.mail.IT Malware seen in IT spam traffic. keyword
abusech.malwarebazaar.intelligence.uploads Number of uploads from MalwareBazaar. long
abusech.malwarebazaar.ioc_expiration_duration The configured expiration duration. keyword
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset name. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset constant_keyword
event.module Event module constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
labels.is_ioc_transform_source Indicates whether an IOC is in the raw source data stream, or the in latest destination index. constant_keyword
log.flags Flags for the log file. keyword
log.offset Offset of the entry in the log file. long
threat.feed.dashboard_id Dashboard ID used for Kibana CTI UI constant_keyword
threat.feed.name Display friendly feed name constant_keyword
threat.indicator.first_seen The date and time when intelligence source first reported sighting this indicator. date
threat.indicator.last_seen The date and time when intelligence source last reported sighting this indicator. date
threat.indicator.modified_at The date and time when intelligence source last modified information for this indicator. date
Exported fields
Field Description Type
@timestamp Event timestamp. date
abusech.sslblacklist.deleted_at The timestamp when the indicator is (will be) deleted. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset name. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset constant_keyword
event.module Event module constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
labels.interval User-configured value for Interval setting. This is used in calculation of indicator expiration time. keyword
labels.is_ioc_transform_source Indicates whether an IOC is in the raw source data stream, or the in latest destination index. constant_keyword
log.flags Flags for the log file. keyword
log.offset Offset of the entry in the log file. long
threat.feed.dashboard_id Dashboard ID used for Kibana CTI UI constant_keyword
threat.feed.name Display friendly feed name constant_keyword
threat.indicator.first_seen The date and time when intelligence source first reported sighting this indicator. date
threat.indicator.last_seen The date and time when intelligence source last reported sighting this indicator. date
threat.indicator.modified_at The date and time when intelligence source last modified information for this indicator. date
Exported fields
Field Description Type
@timestamp Event timestamp. date
abusech.threatfox.confidence_level Confidence level between 0-100. long
abusech.threatfox.deleted_at The indicator expiration timestamp. date
abusech.threatfox.ioc_expiration_duration The configured expiration duration. keyword
abusech.threatfox.malware The malware associated with the IOC. keyword
abusech.threatfox.tags A list of tags associated with the queried malware sample. keyword
abusech.threatfox.threat_type The type of threat. keyword
abusech.threatfox.threat_type_desc The threat descsription. keyword
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset name. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset constant_keyword
event.module Event module constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
labels.is_ioc_transform_source Indicates whether an IOC is in the raw source data stream, or the in latest destination index. constant_keyword
log.flags Flags for the log file. keyword
log.offset Offset of the entry in the log file. long
threat.feed.dashboard_id Dashboard ID used for Kibana CTI UI constant_keyword
threat.feed.name Display friendly feed name constant_keyword
threat.indicator.first_seen The date and time when intelligence source first reported sighting this indicator. date
threat.indicator.last_seen The date and time when intelligence source last reported sighting this indicator. date
threat.indicator.modified_at The date and time when intelligence source last modified information for this indicator. date
Exported fields
Field Description Type
@timestamp Event timestamp. date
abusech.url.blacklists.spamhaus_dbl If the indicator is listed on the spamhaus blacklist. keyword
abusech.url.blacklists.surbl If the indicator is listed on the surbl blacklist. keyword
abusech.url.deleted_at The timestamp when the indicator is (will be) deleted. date
abusech.url.id The ID of the indicator. keyword
abusech.url.larted Indicates whether the malware URL has been reported to the hosting provider (true or false). boolean
abusech.url.last_online Last timestamp when the URL has been serving malware. date
abusech.url.reporter The Twitter handle of the reporter that has reported this malware URL (or anonymous). keyword
abusech.url.tags A list of tags associated with the queried malware URL. keyword
abusech.url.threat The threat corresponding to this malware URL. keyword
abusech.url.url_status The current status of the URL. Possible values are: online, offline and unknown. keyword
abusech.url.urlhaus_reference Link to URLhaus entry. keyword
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset name. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset constant_keyword
event.module Event module constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
labels.interval User-configured value for Interval setting. This is used in calculation of indicator expiration time. keyword
labels.is_ioc_transform_source Indicates whether an IOC is in the raw source data stream, or the in latest destination index. constant_keyword
log.flags Flags for the log file. keyword
log.offset Offset of the entry in the log file. long
threat.feed.dashboard_id Dashboard ID used for Kibana CTI UI constant_keyword
threat.feed.name Display friendly feed name constant_keyword
threat.indicator.first_seen The date and time when intelligence source first reported sighting this indicator. date
threat.indicator.last_seen The date and time when intelligence source last reported sighting this indicator. date
threat.indicator.modified_at The date and time when intelligence source last modified information for this indicator. date
Example
{
    "@timestamp": "2025-07-31T05:12:01.523Z",
    "abusech": {
        "ja3_fingerprints": {
            "deleted_at": "2025-07-31T06:10:34.470Z"
        }
    },
    "agent": {
        "ephemeral_id": "9a4132fc-38d5-43ec-a459-0ef108d28187",
        "id": "28fe4213-ba33-434e-8815-6bbc80c646d0",
        "name": "elastic-agent-82406",
        "type": "filebeat",
        "version": "8.19.0"
    },
    "data_stream": {
        "dataset": "ti_abusech.ja3_fingerprints",
        "namespace": "86925",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "28fe4213-ba33-434e-8815-6bbc80c646d0",
        "snapshot": false,
        "version": "8.19.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "threat"
        ],
        "dataset": "ti_abusech.ja3_fingerprints",
        "ingested": "2025-07-31T05:12:04Z",
        "kind": "enrichment",
        "original": "{\"first_ts\":\"2017-07-14T18:08:15Z\",\"ja3\":\"b386946a5a44d1ddcc843bc75336dfce\",\"last_ts\":\"2019-07-27T20:42:54Z\",\"reason\":\"Dridex\"}",
        "type": [
            "indicator"
        ]
    },
    "input": {
        "type": "cel"
    },
    "labels": {
        "interval": "1h"
    },
    "related": {
        "hash": [
            "b386946a5a44d1ddcc843bc75336dfce"
        ]
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "abusech-ja3_fingerprints"
    ],
    "threat": {
        "indicator": {
            "description": "Dridex",
            "first_seen": "2017-07-14T18:08:15.000Z",
            "last_seen": "2019-07-27T20:42:54.000Z",
            "name": "b386946a5a44d1ddcc843bc75336dfce",
            "type": "software"
        }
    }
}
Example
{
    "@timestamp": "2025-07-16T06:30:10.517Z",
    "abusech": {
        "malware": {
            "deleted_at": "2021-10-10T04:17:02.000Z",
            "ioc_expiration_duration": "5d"
        }
    },
    "agent": {
        "ephemeral_id": "c478eac0-6769-456a-8a26-d5d6cc86318d",
        "id": "5d0ab6a2-0351-4c94-8bfb-e268dee367e4",
        "name": "elastic-agent-40763",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "ti_abusech.malware",
        "namespace": "70630",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "5d0ab6a2-0351-4c94-8bfb-e268dee367e4",
        "snapshot": true,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "threat"
        ],
        "dataset": "ti_abusech.malware",
        "ingested": "2025-07-16T06:30:13Z",
        "kind": "enrichment",
        "original": "{\"file_size\":\"1563\",\"file_type\":\"unknown\",\"firstseen\":\"2021-10-05 04:17:02\",\"imphash\":null,\"md5_hash\":\"9cd5a4f0231a47823c4adba7c8ef370f\",\"sha256_hash\":\"7c0852d514df7faf8fdbfa4f358cc235dd1b1a2d843cc65495d03b502e4099f2\",\"signature\":null,\"ssdeep\":\"48:yazkS7neW+mfe4CJjNXcq5Co4Fr1PpsHn:yrmGNt5mbP2n\",\"tlsh\":\"T109314C5E7822CA70B91AD69300C22D8C2F53EAF229E6686C3BDD4C86FA1344208CF1\",\"urlhaus_download\":\"https://urlhaus-api.abuse.ch/v1/download/7c0852d514df7faf8fdbfa4f358cc235dd1b1a2d843cc65495d03b502e4099f2/\",\"virustotal\":null}",
        "type": [
            "indicator"
        ]
    },
    "input": {
        "type": "cel"
    },
    "related": {
        "hash": [
            "9cd5a4f0231a47823c4adba7c8ef370f",
            "7c0852d514df7faf8fdbfa4f358cc235dd1b1a2d843cc65495d03b502e4099f2",
            "48:yazkS7neW+mfe4CJjNXcq5Co4Fr1PpsHn:yrmGNt5mbP2n",
            "T109314C5E7822CA70B91AD69300C22D8C2F53EAF229E6686C3BDD4C86FA1344208CF1"
        ]
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "abusech-malware"
    ],
    "threat": {
        "indicator": {
            "confidence": "Not Specified",
            "file": {
                "hash": {
                    "md5": "9cd5a4f0231a47823c4adba7c8ef370f",
                    "sha256": "7c0852d514df7faf8fdbfa4f358cc235dd1b1a2d843cc65495d03b502e4099f2",
                    "ssdeep": "48:yazkS7neW+mfe4CJjNXcq5Co4Fr1PpsHn:yrmGNt5mbP2n",
                    "tlsh": "T109314C5E7822CA70B91AD69300C22D8C2F53EAF229E6686C3BDD4C86FA1344208CF1"
                },
                "size": 1563,
                "type": "unknown"
            },
            "first_seen": "2021-10-05T04:17:02.000Z",
            "name": "7c0852d514df7faf8fdbfa4f358cc235dd1b1a2d843cc65495d03b502e4099f2",
            "type": "file"
        }
    }
}
Example
{
    "@timestamp": "2025-07-16T06:30:59.281Z",
    "abusech": {
        "malwarebazaar": {
            "anonymous": 0,
            "deleted_at": "2021-10-10T14:02:45.000Z",
            "intelligence": {
                "downloads": 11,
                "uploads": 1
            },
            "ioc_expiration_duration": "5d"
        }
    },
    "agent": {
        "ephemeral_id": "f5b70b3f-5d2b-4d55-96b0-dc8e46e10b9a",
        "id": "372b884d-d232-4e1e-806c-d08ae525f868",
        "name": "elastic-agent-37187",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "ti_abusech.malwarebazaar",
        "namespace": "64456",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "372b884d-d232-4e1e-806c-d08ae525f868",
        "snapshot": true,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "threat"
        ],
        "dataset": "ti_abusech.malwarebazaar",
        "ingested": "2025-07-16T06:31:02Z",
        "kind": "enrichment",
        "original": "{\"anonymous\":0,\"code_sign\":[],\"dhash_icon\":null,\"file_name\":\"7a6c03013a2f2ab8b9e8e7e5d226ea89e75da72c1519e.exe\",\"file_size\":432640,\"file_type\":\"exe\",\"file_type_mime\":\"application/x-dosexec\",\"first_seen\":\"2021-10-05 14:02:45\",\"imphash\":\"f34d5f2d4577ed6d9ceec516c1f5a744\",\"intelligence\":{\"clamav\":null,\"downloads\":\"11\",\"mail\":null,\"uploads\":\"1\"},\"last_seen\":null,\"md5_hash\":\"1fc1c2997c8f55ac10496b88e23f5320\",\"origin_country\":\"FR\",\"reporter\":\"abuse_ch\",\"sha1_hash\":\"42c7153680d7402e56fe022d1024aab49a9901a0\",\"sha256_hash\":\"7a6c03013a2f2ab8b9e8e7e5d226ea89e75da72c1519e78fd28b2253ea755c28\",\"sha3_384_hash\":\"d63e73b68973bc73ab559549aeee2141a48b8a3724aabc0d81fb14603c163a098a5a10be9f6d33b888602906c0d89955\",\"signature\":\"RedLineStealer\",\"ssdeep\":\"12288:jhhl1Eo+iEXvpb1C7drqAd1uUaJvzXGyO2F5V3bS1jsTacr:7lL\",\"tags\":[\"exe\",\"RedLineStealer\"],\"telfhash\":null,\"tlsh\":\"T13794242864BFC05994E3EEA12DDCA8FBD99A55E3640C743301B4633B8B52B84DE4F479\"}",
        "type": [
            "indicator"
        ]
    },
    "input": {
        "type": "cel"
    },
    "related": {
        "hash": [
            "42c7153680d7402e56fe022d1024aab49a9901a0",
            "d63e73b68973bc73ab559549aeee2141a48b8a3724aabc0d81fb14603c163a098a5a10be9f6d33b888602906c0d89955",
            "7a6c03013a2f2ab8b9e8e7e5d226ea89e75da72c1519e78fd28b2253ea755c28",
            "T13794242864BFC05994E3EEA12DDCA8FBD99A55E3640C743301B4633B8B52B84DE4F479",
            "12288:jhhl1Eo+iEXvpb1C7drqAd1uUaJvzXGyO2F5V3bS1jsTacr:7lL",
            "1fc1c2997c8f55ac10496b88e23f5320",
            "f34d5f2d4577ed6d9ceec516c1f5a744"
        ]
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "abusech-malwarebazaar",
        "exe",
        "RedLineStealer"
    ],
    "threat": {
        "indicator": {
            "file": {
                "extension": "exe",
                "hash": {
                    "md5": "1fc1c2997c8f55ac10496b88e23f5320",
                    "sha1": "42c7153680d7402e56fe022d1024aab49a9901a0",
                    "sha256": "7a6c03013a2f2ab8b9e8e7e5d226ea89e75da72c1519e78fd28b2253ea755c28",
                    "sha384": "d63e73b68973bc73ab559549aeee2141a48b8a3724aabc0d81fb14603c163a098a5a10be9f6d33b888602906c0d89955",
                    "ssdeep": "12288:jhhl1Eo+iEXvpb1C7drqAd1uUaJvzXGyO2F5V3bS1jsTacr:7lL",
                    "tlsh": "T13794242864BFC05994E3EEA12DDCA8FBD99A55E3640C743301B4633B8B52B84DE4F479"
                },
                "mime_type": "application/x-dosexec",
                "name": "7a6c03013a2f2ab8b9e8e7e5d226ea89e75da72c1519e.exe",
                "pe": {
                    "imphash": "f34d5f2d4577ed6d9ceec516c1f5a744"
                },
                "size": 432640
            },
            "first_seen": "2021-10-05T14:02:45.000Z",
            "geo": {
                "country_iso_code": "FR"
            },
            "marking": {
                "tlp": "CLEAR"
            },
            "name": "7a6c03013a2f2ab8b9e8e7e5d226ea89e75da72c1519e78fd28b2253ea755c28",
            "provider": "abuse_ch",
            "type": "file"
        },
        "software": {
            "alias": [
                "RedLineStealer"
            ]
        }
    }
}
Example
{
    "@timestamp": "2025-07-31T05:15:00.672Z",
    "abusech": {
        "sslblacklist": {
            "deleted_at": "2025-07-31T06:13:33.669Z"
        }
    },
    "agent": {
        "ephemeral_id": "80e31fdd-70e8-4156-9a0d-ad6d0d853888",
        "id": "01f51d20-e150-4b4e-a036-1746eb0c7285",
        "name": "elastic-agent-47845",
        "type": "filebeat",
        "version": "8.19.0"
    },
    "data_stream": {
        "dataset": "ti_abusech.sslblacklist",
        "namespace": "19255",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "01f51d20-e150-4b4e-a036-1746eb0c7285",
        "snapshot": false,
        "version": "8.19.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "threat"
        ],
        "dataset": "ti_abusech.sslblacklist",
        "ingested": "2025-07-31T05:15:03Z",
        "kind": "enrichment",
        "original": "{\"reason\":\"HijackLoader C\\u0026C\",\"sha1\":\"029c128ec7f6c5a62ea19f5ad525cd1487971ce4\",\"ts\":\"2025-06-25T06:50:28Z\"}",
        "type": [
            "indicator"
        ]
    },
    "input": {
        "type": "cel"
    },
    "labels": {
        "interval": "1h"
    },
    "related": {
        "hash": [
            "029c128ec7f6c5a62ea19f5ad525cd1487971ce4"
        ]
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "abusech-sslblacklist"
    ],
    "threat": {
        "indicator": {
            "description": "HijackLoader C&C",
            "first_seen": "2025-06-25T06:50:28.000Z",
            "name": "029c128ec7f6c5a62ea19f5ad525cd1487971ce4",
            "type": "x509-certificate"
        }
    }
}
Example
{
    "@timestamp": "2025-07-16T06:31:50.732Z",
    "abusech": {
        "threatfox": {
            "confidence_level": 100,
            "deleted_at": "2022-08-10T19:43:08.000Z",
            "ioc_expiration_duration": "5d",
            "malware": "win.asyncrat",
            "threat_type": "botnet_cc",
            "threat_type_desc": "Indicator that identifies a botnet command&control server (C&C)"
        }
    },
    "agent": {
        "ephemeral_id": "49a54718-d50a-45cf-8da6-597e14572d1b",
        "id": "07477042-3fd0-44e5-83e1-d33c53a1b34d",
        "name": "elastic-agent-57963",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "ti_abusech.threatfox",
        "namespace": "90202",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "07477042-3fd0-44e5-83e1-d33c53a1b34d",
        "snapshot": true,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "threat"
        ],
        "dataset": "ti_abusech.threatfox",
        "id": "841537",
        "ingested": "2025-07-16T06:31:53Z",
        "kind": "enrichment",
        "original": "{\"confidence_level\":100,\"first_seen\":\"2022-08-05 19:43:08 UTC\",\"id\":\"841537\",\"ioc\":\"wizzy.hopto.org\",\"ioc_type\":\"domain\",\"ioc_type_desc\":\"Domain that is used for botnet Command\\u0026control (C\\u0026C)\",\"last_seen\":null,\"malware\":\"win.asyncrat\",\"malware_alias\":null,\"malware_malpedia\":\"https://malpedia.caad.fkie.fraunhofer.de/details/win.asyncrat\",\"malware_printable\":\"AsyncRAT\",\"reference\":\"https://tria.ge/220805-w57pxsgae2\",\"reporter\":\"AndreGironda\",\"tags\":[\"asyncrat\"],\"threat_type\":\"botnet_cc\",\"threat_type_desc\":\"Indicator that identifies a botnet command\\u0026control server (C\\u0026C)\"}",
        "type": [
            "indicator"
        ]
    },
    "input": {
        "type": "cel"
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "abusech-threatfox",
        "asyncrat"
    ],
    "threat": {
        "indicator": {
            "confidence": "High",
            "description": "Domain that is used for botnet Command&control (C&C)",
            "first_seen": "2022-08-05T19:43:08.000Z",
            "marking": {
                "tlp": "WHITE"
            },
            "name": "wizzy.hopto.org",
            "provider": "AndreGironda",
            "reference": "https://tria.ge/220805-w57pxsgae2",
            "type": "domain-name",
            "url": {
                "domain": "wizzy.hopto.org"
            }
        },
        "software": {
            "name": "AsyncRAT",
            "reference": "https://malpedia.caad.fkie.fraunhofer.de/details/win.asyncrat"
        }
    }
}
Example
{
    "@timestamp": "2025-07-16T06:32:41.644Z",
    "abusech": {
        "url": {
            "deleted_at": "2025-07-16T07:31:14.625Z",
            "id": "2786904",
            "threat": "malware_download",
            "url_status": "online"
        }
    },
    "agent": {
        "ephemeral_id": "8039c627-ea96-4027-8751-2ff7db77251b",
        "id": "9106f11b-d54d-46d0-8ace-39e4fff1157b",
        "name": "elastic-agent-41888",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "ti_abusech.url",
        "namespace": "49664",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "9106f11b-d54d-46d0-8ace-39e4fff1157b",
        "snapshot": true,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "threat"
        ],
        "dataset": "ti_abusech.url",
        "ingested": "2025-07-16T06:32:44Z",
        "kind": "enrichment",
        "original": "{\"dateadded\":\"2024-03-19 11:34:09 UTC\",\"id\":\"2786904\",\"last_online\":\"2024-03-19 11:34:09 UTC\",\"reporter\":\"lrz_urlhaus\",\"tags\":[\"elf\",\"Mozi\"],\"threat\":\"malware_download\",\"url\":\"http://115.55.244.160:41619/Mozi.m\",\"url_status\":\"online\",\"urlhaus_link\":\"https://urlhaus.abuse.ch/url/2786904/\"}",
        "type": [
            "indicator"
        ]
    },
    "input": {
        "type": "cel"
    },
    "labels": {
        "interval": "1h"
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "abusech-url",
        "elf",
        "Mozi"
    ],
    "threat": {
        "indicator": {
            "first_seen": "2024-03-19T11:34:09.000Z",
            "last_seen": "2024-03-19T11:34:09.000Z",
            "name": "http://115.55.244.160:41619/Mozi.m",
            "provider": "lrz_urlhaus",
            "reference": "https://urlhaus.abuse.ch/url/2786904/",
            "type": "url",
            "url": {
                "domain": "115.55.244.160",
                "extension": "m",
                "full": "http://115.55.244.160:41619/Mozi.m",
                "original": "http://115.55.244.160:41619/Mozi.m",
                "path": "/Mozi.m",
                "port": 41619,
                "scheme": "http"
            }
        }
    }
}

These inputs can be used in this integration:

This integration datasets use the following APIs:

All abuse.ch datasets now support indicator expiration. For the URL dataset, a full list of active threat indicators are ingested at every interval. For other datasets, namely Malware, MalwareBazaar, and ThreatFox, the threat indicators are expired after the duration IOC Expiration Duration is configured in the integration setting. An Elastic Transform is created for every source index to make sure only active threat indicators are available to the end users. Each transform creates a destination index named logs-ti_abusech_latest.dest_* which only contains active and unexpired threat indicators. The indicator match rules and dashboards are updated to list only active threat indicators. Destinations indices are aliased to logs-ti_abusech_latest.<data_stream_name>.

Source Data stream Destination Index Pattern Destination Alias
logs-ti_abusech.url-* logs-ti_abusech_latest.dest_url-* logs-ti_abusech_latest.url
logs-ti_abusech.malware-* logs-ti_abusech_latest.dest_malware-* logs-ti_abusech_latest.malware
logs-ti_abusech.malwarebazaar-* logs-ti_abusech_latest.dest_malwarebazaar-* logs-ti_abusech_latest.malwarebazaar
logs-ti_abusech.threatfox-* logs-ti_abusech_latest.dest_threatfox-* logs-ti_abusech_latest.threatfox

To facilitate IoC expiration, source data stream-backed indices .ds-logs-ti_abusech.<data_stream_name>-* are allowed to contain duplicates from each polling interval. ILM policy logs-ti_abusech.<data_stream_name>-default_policy is added to these source indices, so it doesn't lead to unbounded growth. This means that in these source indices data will be deleted after 5 days from ingested date.

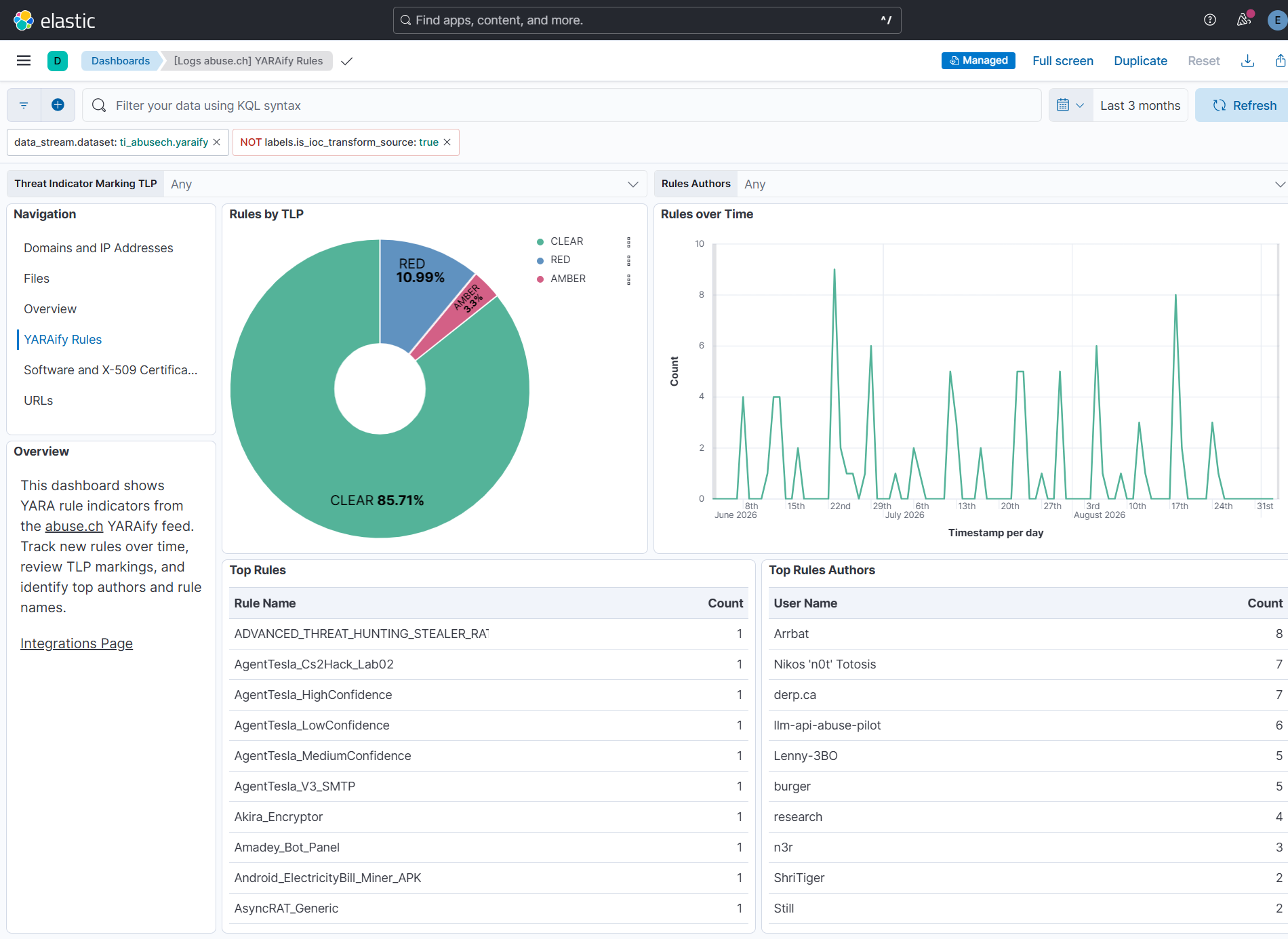

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

abuse.ch Overview Dashboard Screenshot
abuse.ch Files Dashboard Screenshot
abuse.ch URLs Dashboard Screenshot
abuse.ch Softwares and x509 Certificates Dashboard Screenshot
abuse.ch Domains and IP Addresses Dashboard Screenshot
Changelog
Version Details Kibana version(s)
3.4.0 Enhancement (View pull request)
Add support for the 'Domain and IP Addresses' and 'Software and x509 Certificates' dashboards.
Update deprecated visualization charts and implemented best practices in the existing Overview, Files, and URLs dashboards.
 8.19.0 or higher
9.1.0 or higher
3.3.0 Enhancement (View pull request)
Update documentation.		 8.19.0 or higher
9.1.0 or higher
3.2.0 Enhancement (View pull request)
Add ja3_fingerprints and sslblacklist data streams.		 8.19.0 or higher
9.1.0 or higher
3.1.0 Enhancement (View pull request)
Add terminate processor in ingest pipelines to filter out events containing CEL errors. Add threat.indicator.marking.tlp ECS field mapping in threatfox and malwarebazaar data streams. Add threat.indicator.confidence ECS field mapping in malware data stream. Improve system tests configuration.		 8.18.0 or higher
9.0.0 or higher
3.0.0 Breaking change (View pull request)
Auth Key (API Key) is now required for all AbuseCH API requests. Requests without authentication will be denied.
See the official announcement: https://abuse.ch/blog/community-first/
 8.18.0 or higher
9.0.0 or higher
2.10.1 Bug fix (View pull request)
Add temporary processor to remove the fields added by the Agentless policy.		 8.18.0 or higher
9.0.0 or higher
2.10.0 Bug fix (View pull request)
Increase memory for agentless deployment.		 8.18.0 or higher
9.0.0 or higher
2.9.2 Bug fix (View pull request)
Fix default request trace enabled behavior.		 8.18.0 or higher
9.0.0 or higher
2.9.1 Bug fix (View pull request)
Properly handle CEL errors.		 8.18.0 or higher
9.0.0 or higher
2.9.0 Enhancement (View pull request)
Enable request trace log removal.		 8.18.0 or higher
9.0.0 or higher
2.8.0 Enhancement (View pull request)
Add support for 'Auth-Key' in request header for all data streams.		 8.18.0 or higher
9.0.0 or higher
2.7.0 Enhancement (View pull request)
Enable Agentless deployment.		 8.18.0 or higher
9.0.0 or higher
2.6.1 Bug fix (View pull request)
Add support for 'Auth-Key' in request header for all data streams.		 8.13.0 or higher
9.0.0 or higher
2.6.0 Enhancement (View pull request)
Update Kibana constraint to support 9.0.0.		 8.13.0 or higher
9.0.0 or higher
2.5.1 Bug fix (View pull request)
Updated SSL description to be uniform and to include links to documentation.		 8.13.0 or higher
2.5.0 Enhancement (View pull request)
Do not remove event.original in main ingest pipeline.		 8.13.0 or higher
2.4.0 Enhancement (View pull request)
Add "preserve_original_event" tag to documents with event.kind set to "pipeline_error".		 8.13.0 or higher
2.3.5 Bug fix (View pull request)
Use triple-brace Mustache templating when referencing variables in ingest pipelines.		 8.13.0 or higher
2.3.4 Bug fix (View pull request)
Use triple-brace Mustache templating when referencing variables in ingest pipelines.		 8.13.0 or higher
2.3.3 Bug fix (View pull request)
Fix labels.is_ioc_transform_source values		 8.13.0 or higher
2.3.2 Bug fix (View pull request)
Add missing fields in transform		 8.13.0 or higher
2.3.1 Bug fix (View pull request)
Fix ECS date mapping on threat fields.		 8.13.0 or higher
2.3.0 Enhancement (View pull request)
Improve error reporting for API request failures.		 8.13.0 or higher
2.2.0 Enhancement (View pull request)
Update the kibana constraint to ^8.13.0. Modified the field definitions to remove ECS fields made redundant by the ecs@mappings component template.		 8.13.0 or higher
2.1.0 Enhancement (View pull request)
Improve error handling and reporting in malwarebazaar data stream.		 8.12.0 or higher
2.0.1 Bug fix (View pull request)
Adjust field mappings for transform destination index.		 8.12.0 or higher
2.0.0 Enhancement (View pull request)
Support IoC expiration		 8.12.0 or higher
1.25.0 Enhancement (View pull request)
Update manifest format version to v3.0.3.		 8.7.1 or higher
1.24.1 Enhancement (View pull request)
Changed owners		 8.7.1 or higher
1.24.0 Enhancement (View pull request)
Limit request tracer log count to five.		 8.7.1 or higher
1.23.0 Enhancement (View pull request)
ECS version updated to 8.11.0.		 8.7.1 or higher
1.22.0 Enhancement (View pull request)
Improve 'event.original' check to avoid errors if set.		 8.7.1 or higher
1.21.0 Enhancement (View pull request)
ECS version updated to 8.10.0.		 8.7.1 or higher
1.20.0 Enhancement (View pull request)
The format_version in the package manifest changed from 2.11.0 to 3.0.0. Removed dotted YAML keys from package manifest. Added 'owner.type: elastic' to package manifest.		 8.7.1 or higher
1.19.0 Enhancement (View pull request)
Add tags.yml file so that integration's dashboards and saved searches are tagged with "Security Solution" and displayed in the Security Solution UI.		 8.7.1 or higher
1.18.0 Enhancement (View pull request)
Update package-spec to 2.9.0.		 8.7.1 or higher
1.17.0 Enhancement (View pull request)
Update package to ECS 8.9.0.		 8.7.1 or higher
1.16.0 Enhancement (View pull request)
Document duration units.		 8.7.1 or higher
1.15.2 Bug fix (View pull request)
Change ThreatFox initial interval to integer and note valid values 1-7		 8.7.1 or higher
1.15.1 Bug fix (View pull request)
Remove fields with empty string values		 8.7.1 or higher
1.15.0 Enhancement (View pull request)
Convert visualizations to lens.		 8.7.1 or higher
1.14.0 Enhancement (View pull request)
Document valid duration units.		 8.7.1 or higher
1.13.0 Enhancement (View pull request)
Ensure event.kind is correctly set for pipeline errors.		 8.7.1 or higher
1.12.0 Enhancement (View pull request)
Update package to ECS 8.8.0.		 8.7.1 or higher
1.11.0 Enhancement (View pull request)
Add a new flag to enable request tracing		 8.7.1 or higher
1.10.0 Enhancement (View pull request)
Update package to ECS 8.7.0.		 8.0.0 or higher
1.9.0 Enhancement (View pull request)
Update package to ECS 8.6.0.		 8.0.0 or higher
1.8.0 Enhancement (View pull request)
Update package to ECS 8.5.0.		 8.0.0 or higher
1.7.1 Bug fix (View pull request)
Change abusech.malwarebazaar.code_sign to Nested field		 8.0.0 or higher
1.7.0 Enhancement (View pull request)
Add Threat Fox datastream		 8.0.0 or higher
1.6.0 Enhancement (View pull request)
Update package to ECS 8.4.0		 8.0.0 or higher
1.5.1 Bug fix (View pull request)
Fix proxy URL documentation rendering.		 8.0.0 or higher
1.5.0 Enhancement (View pull request)
Update categories to include threat_intel.		 8.0.0 or higher
1.4.0 Enhancement (View pull request)
Update package to ECS 8.3.0.		 8.0.0 or higher
1.3.2 Enhancement (View pull request)
Added link to AbuseCH documentation in readme		 8.0.0 or higher
1.3.1 Enhancement (View pull request)
Update package descriptions		 8.0.0 or higher
1.3.0 Enhancement (View pull request)
Update to ECS 8.2		 8.0.0 or higher
1.2.3 Enhancement (View pull request)
Add mapping for event.created		 8.0.0 or higher
1.2.2 Enhancement (View pull request)
Add documentation for multi-fields		 8.0.0 or higher
1.2.1 Bug fix (View pull request)
Fix field mapping conflicts in threat.indicator.file.x509.not_before/not_after		 —
1.2.0 Enhancement (View pull request)
Update to ECS 8.0		 8.0.0 or higher
1.1.5 Bug fix (View pull request)
Removes extra tag from dashboards		 8.0.0 or higher
1.1.4 Bug fix (View pull request)
Regenerate test files using the new GeoIP database		 8.0.0 or higher
1.1.3 Bug fix (View pull request)
Change test public IPs to the supported subset		 —
1.1.2 Enhancement (View pull request)
Fixing typo in base-fields.yml		 —
1.1.1 Enhancement (View pull request)
Update ECS fields for threat.feed.name		 —
1.1.0 Enhancement (View pull request)
Adding dashboards and adding minor tweaks to pipeline		 8.0.0 or higher
1.0.4 Enhancement (View pull request)
Bump minimum version in manifest		 8.0.0 or higher
1.0.3 Enhancement (View pull request)
Bump minimum version		 —
1.0.2 Enhancement (View pull request)
Update title and description.		 —
1.0.1 Enhancement (View pull request)
Fix invisible package icon		 —
1.0.0 Enhancement (View pull request)
Initial Release		 —
