Microsoft Exchange Online Message Trace
| Version | 2.0.1 (View all) |
| Subscription level What's this? |
Basic |
| Developed by What's this? |
Elastic |
| Ingestion method(s) | API, File |
| Minimum Kibana version(s) | 9.1.4 9.0.7 8.19.4 |
This integration is for Microsoft Exchange Online Message Trace logs. It includes the following datasets for receiving logs over the Microsoft Exchange Online Message Trace API or read from a file:
logdataset: supports Microsoft Exchange Online Message Trace logs.
Microsoft has announced the deprecation on March 18th, 2026 of the legacy Message Trace API support in the Reporting Webservice.
This integration has been updated to use the new Graph-based message trace API. New credential setup will be required, as described below.
The new Message Trace experience includes an updated PowerShell cmdlet, Get-MessageTraceV2, in General Availability since June 3rd, 2025, which can be used to collect data with a manual script, to be ingested from a log file. However, the Graph-based message trace API is preferred.
To collect message trace logs from Microsoft's Graph API, you need to:
- Create an Entra app and record the Directory ID (tenant ID) and Application ID (client ID).
- Add the
ExchangeMessageTrace.Read.Allpermission and grant admin consent for it. - Create a client secret and record it.
- Create a service principal for Microsoft's internal Message Trace app in the tenant.
For more details, refer to Microsoft's Graph-based message trace API onboarding guide.
After that is done, you can configure the Microsoft Exchange Online Message Trace integration using the Tenant ID, Client ID and Client Secret.
These are different from the OAuth credentials used previously with the legacy Message Trace API in the Reporting Webservice.
To configure Local Domains you can check your Microsoft Admin Exchange Center for the domains
available in your organization. They are usually under the sections Accepted Domains and Remote Domains.
It is possible to collect data using a PowerShell script and have the integration ingest it from a log file. However, the Graph API-based method above is preferred.
Disclaimer: You may need to adapt the authentication method of the script
below to match your environment. For more information about authentication
methods available in PowerShell, please see the
guides here.
Note that basic authentication (with -Authentication Basic) is no longer
supported.
The following example PowerShell script can be adapted to fetch the logs and write them into a JSON file that the integration can consume (via the logfile input).
Prerequisites:
Install the Exchange Online Management module by running the following command:
Install-Module -Name ExchangeOnlineManagement
Import the Exchange Online Management module by running the following command:
Import-Module -Name ExchangeOnlineManagement
This script would have to be triggered at a certain interval, in accordance
with the look-back interval specified. In this example script, the look back
is 24 hours, so the interval would need to be daily. For more information about
the Get-MessageTraceV2 cmdlet, please refer to its
documentation.
# Username and Password
$username = "USERNAME@DOMAIN.TLD"
$password = "PASSWORD"
# Lookback in Hours
$lookback = "-24"
# Results per request (maximum 5000)
$resultSize = "5000"
# Output of the json file
# This would then be ingested via the integration
$output_location = "C:\temp\messageTrace.json"
$password = ConvertTo-SecureString $password -AsPlainText -Force
$Credential = New-Object System.Management.Automation.PSCredential ($username, $password)
$startDate = (Get-Date).AddHours($lookback)
$endDate = Get-Date
Connect-ExchangeOnline -Credential $Credential
$paginate = 1
$output = @()
# Initialize V2-style pagination cursor values
$startingRecipientAddress = $null
$currentEndDate = $endDate
while ($paginate -eq 1)
{
if ($startingRecipientAddress) {
$messageTrace = Get-MessageTraceV2 -ResultSize $resultSize -StartDate $startDate -EndDate $currentEndDate -StartingRecipientAddress $startingRecipientAddress
}
else {
$messageTrace = Get-MessageTraceV2 -ResultSize $resultSize -StartDate $startDate -EndDate $currentEndDate
}
if (!$messageTrace)
{
$paginate = 0
}
else
{
$output = $output + $messageTrace
# If we got fewer than ResultSize rows, we've reached the end
if ($messageTrace.Count -lt [int]$resultSize)
{
$paginate = 0
}
else
{
# Prepare the cursor data for the next query
$last = $messageTrace[-1]
$startingRecipientAddress = $last.RecipientAddress
$currentEndDate = $last.Received
}
}
}
if (Test-Path $output_location)
{
Remove-Item $output_location
}
foreach ($event in $output)
{
$event.StartDate = [Xml.XmlConvert]::ToString(($event.StartDate), [Xml.XmlDateTimeSerializationMode]::Utc)
$event.EndDate = [Xml.XmlConvert]::ToString(($event.EndDate), [Xml.XmlDateTimeSerializationMode]::Utc)
$event.Received = [Xml.XmlConvert]::ToString(($event.Received), [Xml.XmlDateTimeSerializationMode]::Utc)
$event = $event | ConvertTo-Json -Compress
Add-Content $output_location $event -Encoding UTF8
}
Example
{
"@timestamp": "2022-10-21T17:25:36.969Z",
"agent": {
"ephemeral_id": "11edfb81-b112-45ba-8f01-6e7483e450fa",
"id": "1c0788e9-492a-441e-acab-fc8c56281cf1",
"name": "elastic-agent-22259",
"type": "filebeat",
"version": "8.19.4"
},
"data_stream": {
"dataset": "microsoft_exchange_online_message_trace.log",
"namespace": "71098",
"type": "logs"
},
"destination": {
"domain": "contoso.com",
"registered_domain": "contoso.com",
"top_level_domain": "com",
"user": {
"domain": "contoso.com",
"email": "linus@contoso.com",
"id": "linus@contoso.com",
"name": "linus"
}
},
"ecs": {
"version": "8.11.0"
},
"elastic_agent": {
"id": "1c0788e9-492a-441e-acab-fc8c56281cf1",
"snapshot": false,
"version": "8.19.4"
},
"email": {
"attachments": {
"file": {
"size": 22761
}
},
"delivery_timestamp": "2022-10-21T17:25:36.969376Z",
"from": {
"address": [
"noreply@azure.microsoft.com"
]
},
"local_id": "a5e6dc0f-23df-4b20-d240-08dab38944a1",
"message_id": "<GVAP278MB037586A65EF1FB2F844B0258DA2D9@GVAP278MB0375.CHEP278.PROD.OUTLOOK.COM>",
"subject": "testmail 2",
"to": {
"address": [
"linus@contoso.com"
]
}
},
"event": {
"agent_id_status": "verified",
"category": [
"email"
],
"dataset": "microsoft_exchange_online_message_trace.log",
"ingested": "2025-10-06T13:13:06Z",
"original": "{\"Organization\":\"contoso.com\",\"MessageId\":\"\\u003cGVAP278MB037586A65EF1FB2F844B0258DA2D9@GVAP278MB0375.CHEP278.PROD.OUTLOOK.COM\\u003e\",\"Received\":\"2022-10-21T17:25:36.969376Z\",\"SenderAddress\":\"noreply@azure.microsoft.com\",\"RecipientAddress\":\"linus@contoso.com\",\"Subject\":\"testmail 2\",\"Status\":\"Delivered\",\"ToIP\":null,\"FromIP\":\"40.107.23.54\",\"Size\":22761,\"MessageTraceId\":\"a5e6dc0f-23df-4b20-d240-08dab38944a1\",\"StartDate\":\"2022-10-21T09:40:10Z\",\"EndDate\":\"2022-10-22T09:40:10Z\",\"Index\":0}",
"outcome": "success",
"type": [
"info"
]
},
"input": {
"type": "log"
},
"log": {
"file": {
"path": "/tmp/service_logs/microsoft_exchange_online_message_trace_test.ndjson.log"
},
"offset": 0
},
"microsoft": {
"online_message_trace": {
"EndDate": "2022-10-22T09:40:10Z",
"FromIP": "40.107.23.54",
"Index": 0,
"MessageId": "<GVAP278MB037586A65EF1FB2F844B0258DA2D9@GVAP278MB0375.CHEP278.PROD.OUTLOOK.COM>",
"MessageTraceId": "a5e6dc0f-23df-4b20-d240-08dab38944a1",
"Organization": "contoso.com",
"Received": "2022-10-21T17:25:36.969376Z",
"RecipientAddress": "linus@contoso.com",
"SenderAddress": "noreply@azure.microsoft.com",
"Size": 22761,
"StartDate": "2022-10-21T09:40:10Z",
"Status": "Delivered",
"Subject": "testmail 2"
}
},
"related": {
"user": [
"linus@contoso.com",
"noreply@azure.microsoft.com",
"linus",
"noreply"
]
},
"source": {
"domain": "azure.microsoft.com",
"ip": "40.107.23.54",
"registered_domain": "microsoft.com",
"subdomain": "azure",
"top_level_domain": "com",
"user": {
"domain": "azure.microsoft.com",
"email": "noreply@azure.microsoft.com",
"id": "noreply@azure.microsoft.com",
"name": "noreply"
}
},
"tags": [
"preserve_original_event",
"microsoft-defender-endpoint",
"forwarded"
]
}
Exported fields
| Field | Description | Type |
|---|---|---|
| @timestamp | Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. | date |
| data_stream.dataset | The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.namespace | A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.type | An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. | constant_keyword |
| event.dataset | Event dataset | constant_keyword |
| input.type | keyword | |
| log.offset | long | |
| microsoft.online_message_trace.EndDate | This field is used to limit the report period. Use this field in a $filter query option to set the end date and time of the reporting period. If you supply EndDate in the $filter option, you must also supply StartDate. In this report, this field corresponds to the date and time of the last processing step recorded for the message. | date_nanos |
| microsoft.online_message_trace.FromIP | The IPv4 or IPv6 address that transmitted the message to the Office 365 email system. | keyword |
| microsoft.online_message_trace.Index | long | |
| microsoft.online_message_trace.MessageId | The Internet MessageID header of the message, if one was supplied. This value can also be explicitly null.</p></td> | keyword |
| microsoft.online_message_trace.MessageTraceId | An identifier used to get the detailed message transfer trace information.</p></td> | keyword |
| microsoft.online_message_trace.Organization | The fully qualified domain name that was processing the email.</p></td> | keyword |
| microsoft.online_message_trace.Received | The date and time when the email was received by the Office 365 email system. This corresponds to the Date field of the first message trace detail entry.</p></td> | date_nanos |
| microsoft.online_message_trace.RecipientAddress | The SMTP email address of the user that the message was addressed to.</p></td> | keyword |
| microsoft.online_message_trace.SenderAddress | The SMTP email address of the user the message was purportedly from. Because sender addresses are commonly spoofed in spam email, they are not considered completely reliable.</p></td> | keyword |
| microsoft.online_message_trace.Size | The size of the message, in bytes. | long |
| microsoft.online_message_trace.StartDate | This field is used to limit the report period. Use this field in a $filter query option to set the start date and time of the reporting period. If you provide a StartDate in the $filter option, you must also specify an EndDate. In this report, this field corresponds to the date and time of the first processing step recorded for the message.</p></td> | date_nanos |
| microsoft.online_message_trace.Status | The status of the message in the Office 365 email system. This corresponds to the Detail field of the last processing step recorded for the message.</p></td> | keyword |
| microsoft.online_message_trace.Subject | The subject line of the message, if one was present for the message.</p></td> | keyword |
| microsoft.online_message_trace.ToIP | The IPv4 or IPv6 address that the Office 365 email system sent the message to.</p></td> | keyword |

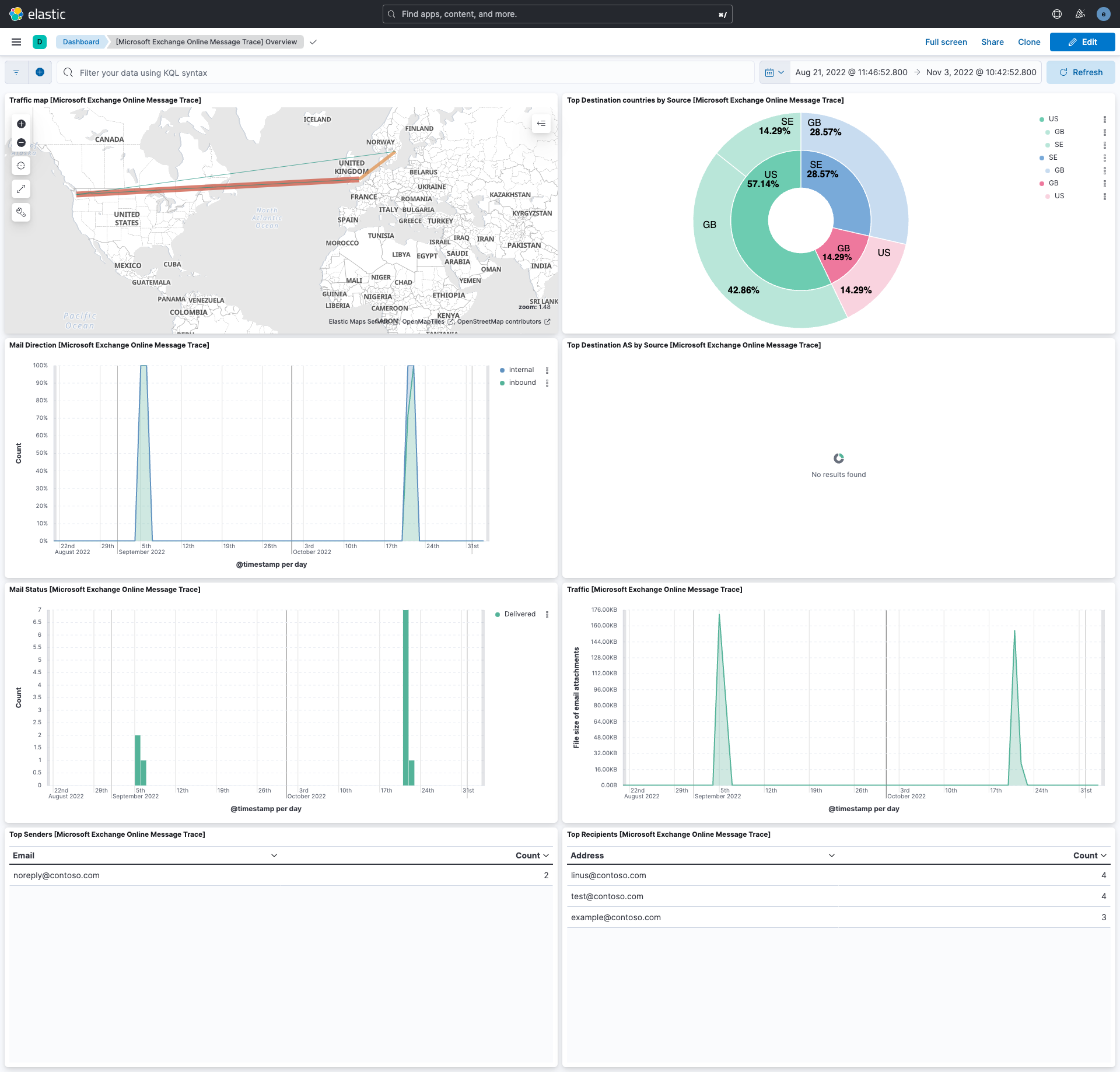

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.
