Fortinet FortiManager Logs Integration for Elastic

The Fortinet FortiManager Logs integration for Elastic enables you to collect and analyze logs from Fortinet FortiManager and FortiAnalyzer instances. This integration provides centralized visibility into your network operations and security events, helping you enhance your management and security posture.

This integration facilitates:

• Centralized security monitoring: Aggregate security events and alerts from multiple instances into your Elastic Stack for comprehensive threat detection, incident response, and forensic analysis.
• Compliance and auditing: Collect detailed system, device management, and logging status logs to meet regulatory compliance requirements and perform security audits.
• Operational visibility: Monitor administrative actions, configuration changes, firmware updates, and device management events across the Fortinet Security Fabric to maintain operational awareness and troubleshoot issues.
• Log management and archiving: Centralize logs for long-term storage, enabling historical analysis and ensuring log availability beyond local storage capabilities.

This integration is compatible with Fortinet FortiManager and FortiAnalyzer versions 7.2.2 and expected to work in versions above. It has been specifically tested against version 7.2.2.

The integration collects logs from your Fortinet devices through several methods. You can configure it to receive syslog data directly over TCP or UDP ports, or use the filestream input to read logs from active files. The integration parses these logs from the syslog format into structured events, covering various subtypes like System Manager (system), Device Manager (devmgr), Object Changes (objcfg), and Firmware Manager (fmwmgr). Once parsed, the Elastic Agent sends the data to your Elastic deployment where you can monitor and analyze it.

The Fortinet FortiManager Logs integration collects log messages pushed using tcp or udp, or read from active log files using the filestream input. The integration parses Syslog-formatted data from the following functional areas:

Integrating Fortinet FortiManager logs with the Elastic Stack provides you with deep visibility into your network management infrastructure. You can use this integration for the following use cases:

• Audit administrative changes: You'll have a clear record of which administrator changed a configuration object and when, which is essential for troubleshooting and regulatory compliance.
• Monitor deployment health: You can track the success or failure of policy deployments across your entire network, allowing you to catch errors before they affect traffic.
• Troubleshoot device connectivity: By monitoring the fgfm logs, you'll quickly identify and resolve issues with managed FortiGate devices losing connection to the FortiManager.
• Centralized security logging: You can correlate management events with security events from other parts of your infrastructure within Elastic SIEM to build a complete picture of your security posture.

To get started with the Fortinet FortiManager Logs integration, you'll need the following:

You'll need these Elastic Stack components:

• Elastic Stack version 8.11.0 or higher.
• An installed and enrolled Elastic Agent on a host machine that's network-accessible from your FortiManager or FortiAnalyzer devices.
• Network connectivity between the Elastic Agent and your Elasticsearch cluster to successfully send collected data.
• Sufficient system resources like CPU, memory, and disk I/O on the host running the Elastic Agent to process and forward the anticipated volume of logs.

You'll need these Fortinet-specific items:

• Administrative access to the FortiManager or FortiAnalyzer device to configure log forwarding settings through both the web-based GUI and the command-line interface (CLI).
• Network connectivity between the FortiManager/FortiAnalyzer device and the Elastic Agent's host. You'll need to allow traffic on the specific syslog port, such as 514 or 9022 (TCP or UDP), in any intervening firewalls.
• The Elastic Agent's IP address or fully qualified domain name and the specific TCP or UDP port number it's configured to listen on for incoming syslog messages.
• Elastic Stack version 8.11.0 or newer.
• An installed and enrolled Elastic Agent running on a host machine that's network-accessible from your FortiManager/FortiAnalyzer devices.
• Network connectivity between the Elastic Agent and your Elasticsearch cluster to successfully send collected data for indexing and analysis.
• Sufficient system resources (CPU, memory, and disk I/O) on the host running the Elastic Agent to process and forward the anticipated volume of logs.
• Appropriate read permissions for the Elastic Agent to access the FortiManager/FortiAnalyzer log files if you use the filestream input method for logs stored locally or on an accessible network-mounted filesystem.

Elastic Agent must be installed on a host that has network access to your Fortinet FortiManager instance or access to its log files. For detailed installation instructions, refer to the Elastic Agent installation guide. You can install only one Elastic Agent per host.

Elastic Agent is required to stream data from the syslog or log file receiver and ship the data to Elastic, where the events will be processed using the integration's ingest pipelines.

This step registers the Elastic Agent as a valid log destination in the FortiManager web interface.

1. Log in to the FortiManager web UI using your administrative credentials.
2. Navigate to System Settings > Advanced > Syslog Server. In some older versions, this option may be found under System Settings > Syslog Server.
3. In the Syslog Server pane, click Create New to add a new syslog server entry.
4. Configure the syslog server with the following settings:
   • Name: Provide a descriptive name for the server, for example, elastic-agent-syslog.
   • IP address (or FQDN): Enter the IP address or fully qualified domain name of the server where the Elastic Agent is running and listening for logs.
   • Syslog Server Port: Enter the port number that the Elastic Agent is configured to listen on. The standard default syslog port is 514, but 9022 is a common alternative.
   • Reliable Connection:
     • To send logs using UDP (the default protocol), leave this option disabled.
     • To send logs using TCP, enable this option. This setting must match the protocol you configure in the Elastic Agent integration.
     • Optional TLS setup: When you use TCP with Reliable Connection enabled, you can optionally enable Secure Connection to encrypt traffic using TLS/SSL. If you enable this, you'll need to specify a Local Certificate CN and optionally a Peer Certificate CN. This requires corresponding SSL configuration in the Elastic Agent integration's advanced options.
5. Click OK to save the configuration.

This step activates the sending of logs to the server you previously configured. This can only be done using the CLI.

1. Open the FortiManager CLI console. You can typically access this from the top-right corner of the FortiManager web GUI or using SSH.
2. Enter the following commands to configure the local log syslog daemon settings:

   config system locallog syslogd setting


3. Set the syslog server name to the one you created in Part 1 of the GUI steps:

   set syslog-name "elastic-agent-syslog"


4. Set the minimum severity level of logs to be sent. To ensure all relevant logs are forwarded, it's recommended to set this to information:

   set severity information


5. Enable the syslog service to start forwarding logs:

   set status enable


6. Apply the configuration changes:

   end


7. (Optional) You can verify the connection from the FortiManager GUI. Navigate back to System Settings > Advanced > Syslog Server, select your configured server, and click the Test button to send a test message.

For filestream collection, you must configure FortiManager or FortiAnalyzer to store logs locally on the system where the Elastic Agent is running, or on a network-mounted filesystem accessible by the agent. Common log paths can include /var/log/fortinet/fortimanager.log*. Ensure that the Elastic Agent has the necessary file system read permissions to access these log files. For more information, refer to the official Fortinet documentation regarding local log storage and retention.

The following resources provide additional information on configuring FortiManager:

• Syslog Server | FortiManager 7.6.4 | Fortinet Document Library
• Send local logs to syslog server | FortiManager 7.4.5 | Fortinet Document Library
• Technical tip: Configure FortiManager to send logs to a syslog server - Fortinet Community

To set up the integration in Kibana:

1. In Kibana, navigate to Management > Integrations.
2. Search for "Fortinet FortiManager Logs" and select the integration.
3. Click Add Fortinet FortiManager Logs.
4. Configure the integration by selecting an input type and providing the necessary settings. This integration supports TCP, UDP, and Filestream (Log file) inputs.

Choose the setup instructions below that match your configuration.

Use this input if the Elastic Agent has direct access to FortiManager log files.

Under Advanced Options, you can configure the following optional parameters:

• Tags: Custom tags to add to the events (defaults to forwarded, fortinet_fortimanager-log).
• Processors: Add custom processors to enhance or reduce event fields before parsing.

Use this input to collect logs over a TCP socket.

Under Advanced Options, you can configure the following optional parameters:

• Custom TCP Options: Configure framing, message size, and connections.
• SSL Configuration: Configure SSL options for encrypted communication. See SSL configuration documentation for details. You can configure certificate authorities and other SSL/TLS settings to secure the connection between FortiManager and the Elastic Agent.
• Processors: Add custom processors to enhance or reduce event fields before parsing.

Use this input to collect logs over a UDP socket.

Under Advanced Options, you can configure the following optional parameters:

• Custom UDP Options: Configure max message size and timeout.
• Processors: Add custom processors to enhance or reduce event fields before parsing.

After configuring the input, assign the integration to an agent policy and click Save and continue.

To verify the integration is working correctly:

1. Check the status of the Elastic Agent in Kibana. Navigate to Management > Fleet > Agents and ensure the agent assigned to the FortiManager policy is "Healthy" and "Online".
2. Trigger data flow on the FortiManager device by performing one of the following actions:
   • Generate a configuration event: Make a minor change in the GUI (for example, adding a comment) and save it.
   • Trigger a system event: Run a command like diagnose sys top in the CLI.
   • Authentication: Log out and log back in to the web GUI.
3. Navigate to Analytics > Discover in Kibana.
4. Enter the following KQL filter in the search bar: data_stream.dataset : "fortinet_fortimanager.log"
5. Verify that logs appear in the results. Expand an entry and confirm the following fields are populated:
   • event.dataset (should be fortinet_fortimanager.log)
   • source.ip (IP address of the FortiManager device)
   • fortimanager.log.type (for example, event or traffic)
   • fortimanager.log.subtype (for example, system, objcfg, or devmgr)
   • message (containing the raw log payload)
6. Navigate to Analytics > Dashboards and search for "Fortinet FortiManager" to view the pre-built dashboards.

For help with Elastic ingest tools, check the common problems documentation.

You can resolve most integration issues by checking these common scenarios:

• No logs received by Elastic Agent: Verify that the IP address (or FQDN) and Syslog Server Port settings in the FortiManager GUI match the Listen Address and Listen Port configured in the integration. Check for network firewalls blocking ports like 514 or 9022. Use netstat -tulnp | grep <port> on the host to confirm the agent is actively listening.
• Incorrect protocol configuration: Check the Reliable Connection option in the FortiManager Syslog Server settings. This option must be enabled when using the tcp input and disabled when using the udp input.
• Log forwarding not enabled or severity too low: Check the CLI configuration using the config system locallog syslogd setting command. Ensure that set status enable is active and set severity information (or another appropriate level) is set to capture the necessary logs.
• Filestream input permission issues: If you use the filestream input, ensure the Elastic Agent process has the required read permissions for the log file paths, such as /var/log/fortinet/fortimanager.log*.
• Parsing failures or incomplete events: Check for the presence of error.message fields in Kibana. Examine the event.original field for the raw log content to identify formatting issues. If logs appear truncated, increase the max_message_size in the Custom TCP Options or Custom UDP Options configuration.
• Missing or incorrect fields: Verify the preserve_duplicate_custom_fields setting in the integration configuration and ensure the source device is sending all expected log details.

For more information on architectures that you can use for scaling this integration, check the Ingest Architectures documentation.

To ensure you get optimal performance in high-volume environments, consider the following:

• Transport and collection considerations: When you're collecting logs using syslog, choosing between tcp and udp is crucial. tcp offers reliable, ordered delivery, which is ideal for critical security logs where data integrity is paramount, though it might introduce slightly more overhead. udp provides faster, connectionless delivery, making it suitable for high-volume, less critical logs where some occasional packet loss is acceptable. For filestream, ensure the Elastic Agent has efficient access to log file paths and proper handling of log rotations so you don't encounter data gaps or performance bottlenecks.
• Data volume management: To optimize the performance of both the FortiManager or FortiAnalyzer and the Elastic Stack, configure your source device to filter or limit the types and severity of logs forwarded to the Elastic Agent. Only forward logs essential for your security monitoring, compliance, or operational analysis needs. While setting the minimum severity to information ensures comprehensive logging, you can adjust it to warning or error if data volume becomes unmanageably high.
• Elastic Agent scaling: A single Elastic Agent can handle a significant volume of logs, but for high-throughput environments, you'll want to consider deploying multiple Elastic Agents. Each agent can be configured to listen on a dedicated port or monitor specific subsets of log files, which distributes the ingestion load. Ensure your agents are adequately resourced with CPU, memory, and disk I/O, and are placed strategically (for example, on the same network segment) to minimize network latency to the FortiManager or FortiAnalyzer devices.

These inputs can be used with this integration:

ssl.enabled: true
ssl.certificate: "/path/to/server.crt"
ssl.key: "/path/to/server.key"
ssl.certificate_authorities: ["/path/to/ca.crt"]
ssl.client_authentication: "optional"


The log data stream collects various log types from Fortinet FortiManager, including event, content, and system logs. These logs provide information about device management, configuration changes, and administrative activity.

{
    "@timestamp": "2023-02-19T22:20:11.000Z",
    "agent": {
        "ephemeral_id": "8937d089-d80c-4225-9177-d6286824defd",
        "id": "1c091add-3dae-4323-a5e8-648158c83b7b",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.10.2"
    },
    "data_stream": {
        "dataset": "fortinet_fortimanager.log",
        "namespace": "ep",
        "type": "logs"
    },
    "device": {
        "id": "FMGVMSTM23000100"
    },
    "ecs": {
        "version": "8.17.0"
    },
    "elastic_agent": {
        "id": "1c091add-3dae-4323-a5e8-648158c83b7b",
        "snapshot": false,
        "version": "8.10.2"
    },
    "event": {
        "action": "roll",
        "agent_id_status": "verified",
        "dataset": "fortinet_fortimanager.log",
        "ingested": "2023-10-03T09:57:15Z",
        "kind": "event",
        "original": "<134>date=2023-02-20 time=03:20:11 tz=\"+0500\" devname=Crest-Elastic-FMG-VM64 device_id=FMGVMSTM23000100 log_id=0031040026 type=event subtype=logfile pri=information desc=\"Rolling disk log file\" user=\"system\" userfrom=\"system\" msg=\"Rolled log file glog.1676746501.log of device SYSLOG-0A32041A [SYSLOG-0A32041A] vdom root.\" operation=\"Roll logfile\" performed_on=\"\" changes=\"Rolled log file.\" action=\"roll\"",
        "timezone": "+0500",
        "type": [
            "info"
        ]
    },
    "fortimanager": {
        "log": {
            "action": "roll",
            "changes": "Rolled log file.",
            "date": "2023-02-19T22:20:11.000Z",
            "desc": "Rolling disk log file",
            "dev": {
                "name": "Crest-Elastic-FMG-VM64"
            },
            "device": {
                "id": "FMGVMSTM23000100"
            },
            "id": "0031040026",
            "msg": "Rolled log file glog.1676746501.log of device SYSLOG-0A32041A [SYSLOG-0A32041A] vdom root.",
            "operation": "Roll logfile",
            "pri": "information",
            "priority_number": 134,
            "product": "fortianalyzer",
            "subtype": "logfile",
            "type": "event",
            "user": {
                "from": "system",
                "name": "system"
            }
        }
    },
    "host": {
        "hostname": "Crest-Elastic-FMG-VM64"
    },
    "input": {
        "type": "tcp"
    },
    "log": {
        "source": {
            "address": "192.168.224.5:58676"
        }
    },
    "message": "Rolled log file glog.1676746501.log of device SYSLOG-0A32041A [SYSLOG-0A32041A] vdom root.",
    "related": {
        "hosts": [
            "Crest-Elastic-FMG-VM64"
        ],
        "user": [
            "system"
        ]
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "fortinet_fortimanager-log"
    ],
    "user": {
        "name": "system"
    }
}


You can find more information about FortiManager logs in the following vendor resources:

• FortiManager & FortiAnalyzer Log Reference
• FortiManager 7.6.4 Administration Guide - Syslog Server
• FortiManager 7.4.5 Administration Guide - Send local logs to syslog server
• Fortinet Technical Tip: Configure FortiManager to send logs to a syslog server
• Fortinet FortiManager VM Install Guide

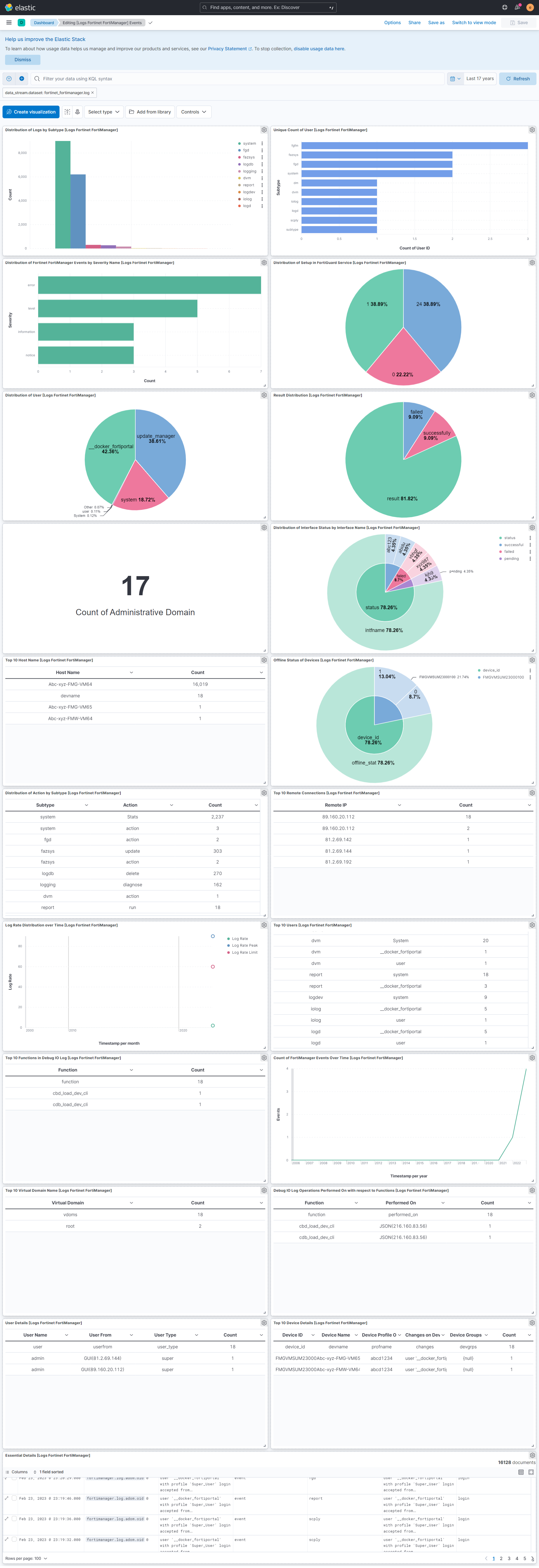

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

×
